Key Features

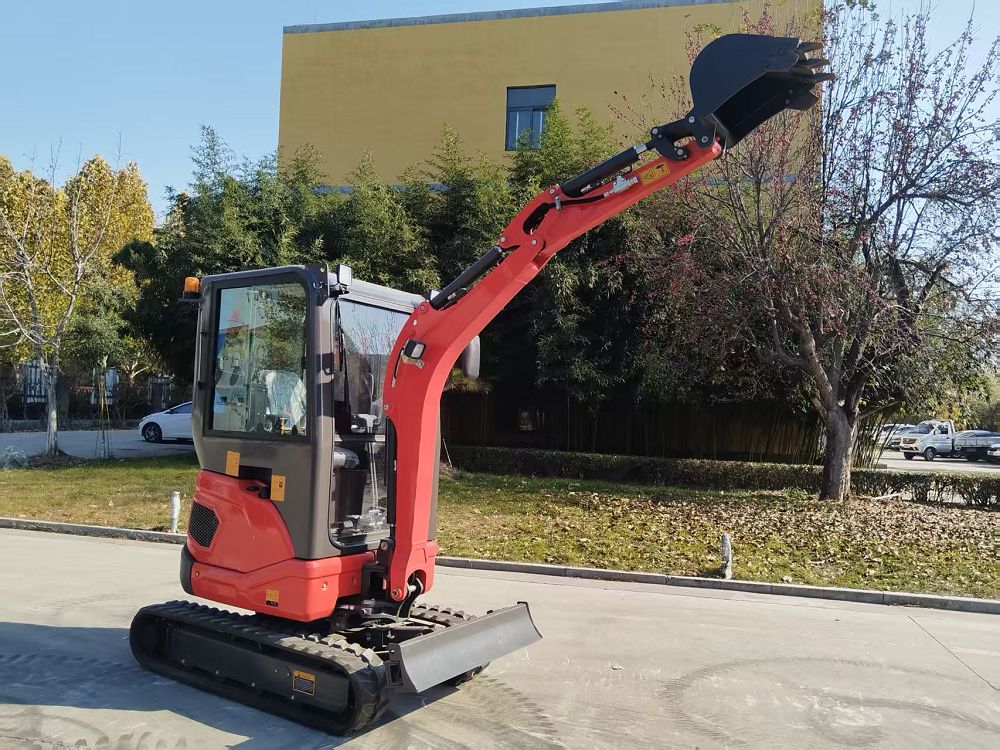

JH8025 - The Sweet Spot Between 2 and 3 Tons
The JH8025 is a market-welcomed compact excavator, positioned in the popular 2–3 ton class where customers want more digging capability without moving to a larger machine.
Its newly designed closed cabin with AC provides more interior space and a much more comfortable operating environment, making long working hours easier for the operator.
Fully equipped with a Kubota engine, piston pump, load-sensing system, swing boom, 2-speed travel and extendable tracks, the JH8025 combines flexibility, smooth performance and operator comfort in one compact package.
2–3 tons. More space. More comfort. More capability.
JH8025 - A compact excavator built for the way operators work today.
Operating weight 2500kg,zero tail and strong engine & hydraulic system,indeed designed for heavy duty works,if you do dealer business or self heavy works or rental business,this model would be your best option,it will not disappoint you in every details.0 Maintenance in more than 2000 working hours,you desever it!
Applications
- Municipal and urban construction: road repair, sidewalk paving, pipeline installation.
- Confined-space excavation: basements, small-scale demolitions, indoor projects.
- Landscaping and agricultural work: orchard maintenance, farm construction.
- Industrial and special projects: warehouse digging, small-scale foundation works.
Parameters
| Model | JH8025 | |
|
ENGINE |
Model |
Kubota D1105 |
|
Fuel Injection |
Direct Injection |
|
|
Four strokes |
4 |
|
|
Water cooling |
Water Cooled |
|
|
Turbo-charging |
Normally Aspirated |
|
|
Air to air intercooler |
- |
|
|
No. of cylinders |
3 |
|
|
Rated power/speed |
14kw/2200rpm |
|
|
Maximum torque/speed |
70.3N/1600m |
|
|
Displacement |
1.123L |
|
|
Main performance |
Swing speed |
10r/min |
|
Grade-ability |
35% |
|
|
Bucket digging force |
15.2KN |
|
|
Arm digging force |
9.2KN |
|
|
Maximum tractive force |
38.4Kn |
|
|
Hydraulic system |
Main pump |
Lezhuo |
|
Rated flow of main pump |
48.4L/Min |
|
|
Main safety valve pressure |
23MPa |
|
|
Undercarriage |
Travel speed(H/L) |
4.3/2.5km/h |
|
Ground pressure |
26.5KPa |
|
|
Track roller number |
3*2 |
|
|
Track number |
86*2 |
|
|
Oil Capacity |
Fuel tank capacity |
22L |
|
Hydraulic tank capacity |
20L |
|
|
Engine oil capacity |
5.1L |
|
|
Coolant |
8L |
|
|
Final drive |
0.3L |
|
Main Dimensions
|
MACHINE SIZE |
Overall length |
3555mm |
|
Overall width |
1200/1500mm |
|
|
Overall height |
2720mm |
|
|
Overall height(cab top) |
2405mm |
|
|
Counter weight clearance |
484mm |
|
|
Min.ground clearance |
166mm |
|
|
Min.tail swing radius |
810mm |
|
|
Track ground length |
1530mm |
|
|
Track length |
1923mm |
|
|
Track gauge |
950/1250mm |
|
|
Track width |
250mm |
|
|
Track shoes width(std) |
250mm |
|
|
Turn-able width |
1200mm |
|
|
WORKING RANGE |
Max.digging height |
3675mm |
|
Max.dumping height |
2440mm |
|
|
Max.digging depth |
2628mm |
|
|
Max.vertical wall digging depth |
2098mm |
|
|
Max.digging reach |
4225mm |
|
|
Max.digging reach at ground level |
4165mm |
|
|
Min.swing radius |
1771mm |
|
|
Min.height at min.swing radius |
2720mm |
|
|
Counter weight height |
484mm |
|
|
Ground length(Transportation) |
3963mm |
|
|
Standard |
Length of boom |
2000mm |
|
Length of arm |
950mm |
|
|
Bucket capacity |
0.07m³ |
