China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 3 ton mini excavator in China. With abundant experience, we warmly welcome you to buy cheap 3 ton mini excavator made in China here from our factory. For price consultation, contact us.
Key Features

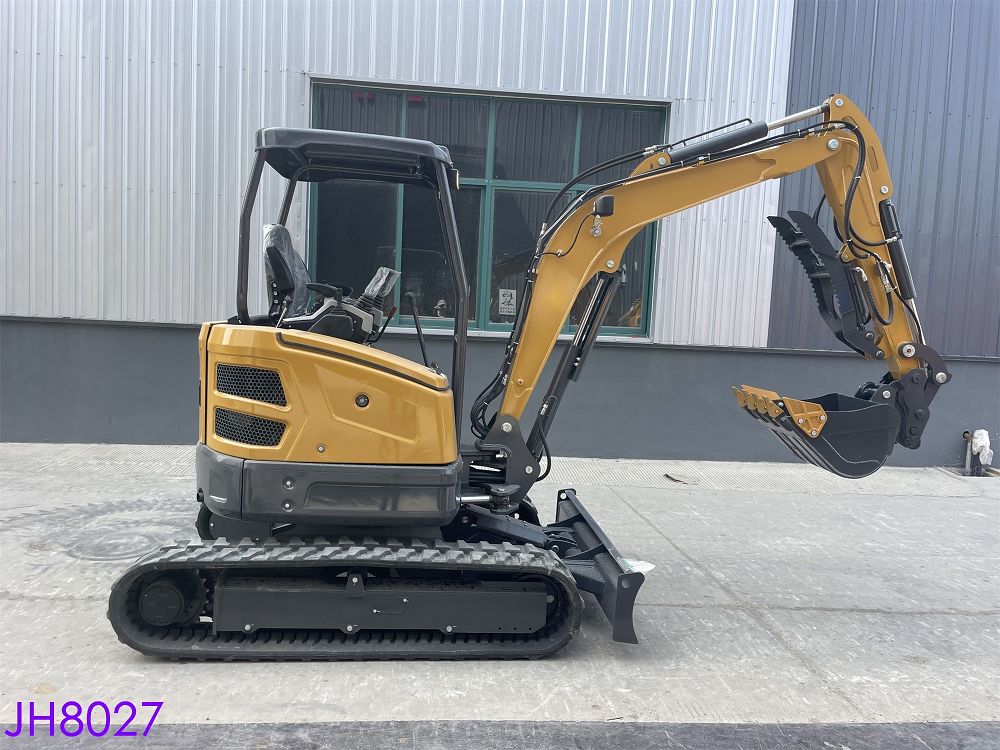

JH8027 - built heavier, built stronger.
One of our best sellers,optional closed cabin or open canopy.
The net weight of the machine is 2740kg, and operating weight can up to 3000kg. Like all our excavator models, JH8027 is designed heavier than many machines in the market for real heavy duty works.
Powered by Kubota D1105, 14KW / 18.8HP, with optional Laidong engine available for different market needs.
Features include:
Equipped with load-sensing hydraulic system, making the operation smoother, more precise and easier to control.
Compact size, but strong working performance for construction, farm works, trenching and other demanding jobs.
Want more details? Contact us anytime!
Applications
Urban Construction:
Pavement repair, small foundation work, landscaping, and urban excavation
Residential & Indoor:
Basement digging, interior demolition, and renovation projects
Agriculture & Forestry:
Orchard trenching, greenhouse preparation, irrigation ditching
Parameters
| Model | JH8027 | |
|
>>>> SPECIFICATIONS: |
||
|
ENGINE |
Emission Standard |
EPA4/EURO 5 |
|
Make |
KUBOTA |
|
|
Model |
D1105 |
|
|
Power /Rotation speed |
14kw(19HP)@2200rpm |
|
|
Number of cylinder |
3 |
|
|
Type |
Water cooled, in-line,4-stroke,mechnical pump. |
|
|
Max. torque of engine |
70.3Nm/ 1600rpm |
|
|
Displacement of engine |
1.123L |
|
|
Engine oil capacity |
5.1L |
|
|
TRACK SYSTEM |
Maximum Travel speed(High-Low speed) |
2.6/4.5km/h |
|
Width of track shoe(Rubber ) |
300mm |
|
|
Carrier roller(one side) |
1 |
|
|
Support wheel(one side) |
3 |
|

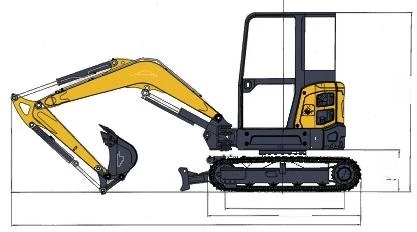

Main Dimensions
|
PERFORMANCE PARAMETER |
Standard bucket capacity |
0.1m³ |
|
Width of standard bucket |
500mm |
|
|
Swing speed |
10 rpm |
|
|
Max. Grade ability |
58° |
|
|
Max. Bucket digging force |
23.5KN |
|
|
Max. Arm digging force |
14KN |
|
|
Hydraulic system pressure |
20.5Mpa |
|
|
Ground pressure |
24Kpa |
|
|
Machine weight |
2750kg |
|
|
Fuel tank capacity |
23L |
|
|
Hydraulic oil tank capacity |
24L |
|
|
Flow of main pump(Variable piston pump) |
61.6L/ min |
|
|
MACHINE SIZE |
Overall dimension (L*W*H) |
4195mm*1550mm*2480mm |
|
Axle base(Track length on ground) |
1565mm |
|
|
Track gauge |
1250mm |
|
|
Min.Ground clearance |
286mm |
|
|
Swing radius at tail |
860mm |
|
|
Boom length |
2200mm |
|
|
Arm length |
1300mm |
|
|

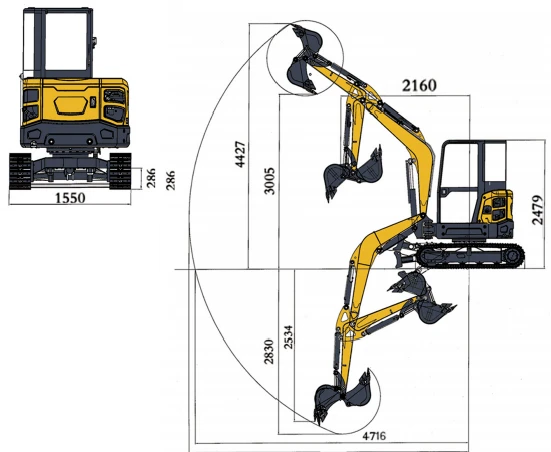

WORKING RANGE |
Max. Digging height |
4427mm |
|
Max. Dumping height |
3005mm |
|
|
Max. Digging depth |
2830mm |
|
|
Max. Vertical digging depth |
2530mm |
|
|
Max. Digging radius |
4835mm |
|
|
Min .swing radius at front |
2160mm |
|
|
Max. Lifting height of blade |
308mm |
|
|
Max. Cutting depth of blade |
363mm |
|
|
Boom swing angle(Left) |
69° |
|
|
Boom swing angle(Right) |
45° |
