China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 0.6t mini excavator | jh8006 in China. With abundant experience, we warmly welcome you to buy cheap 0.6t mini excavator | jh8006 made in China here from our factory. For price consultation, contact us.
Key Features

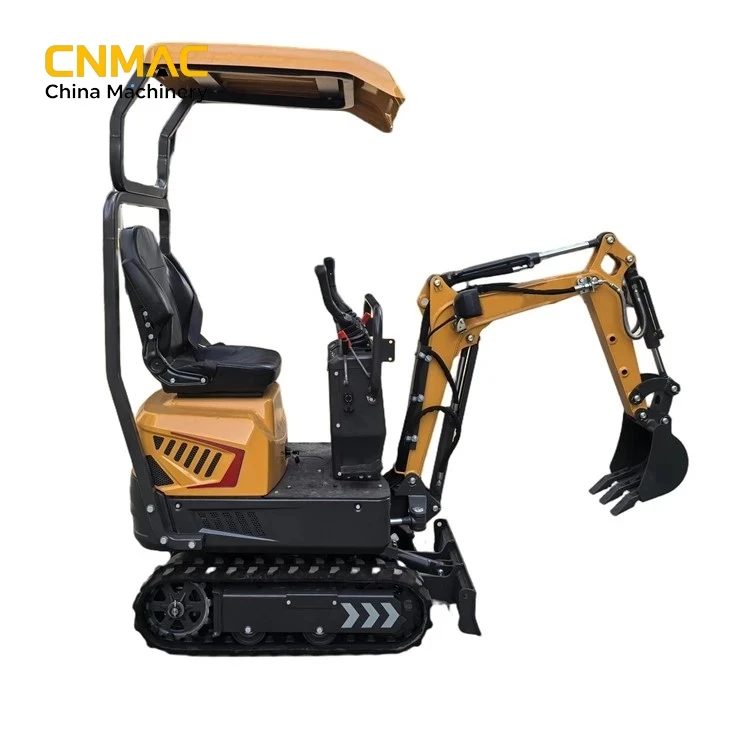

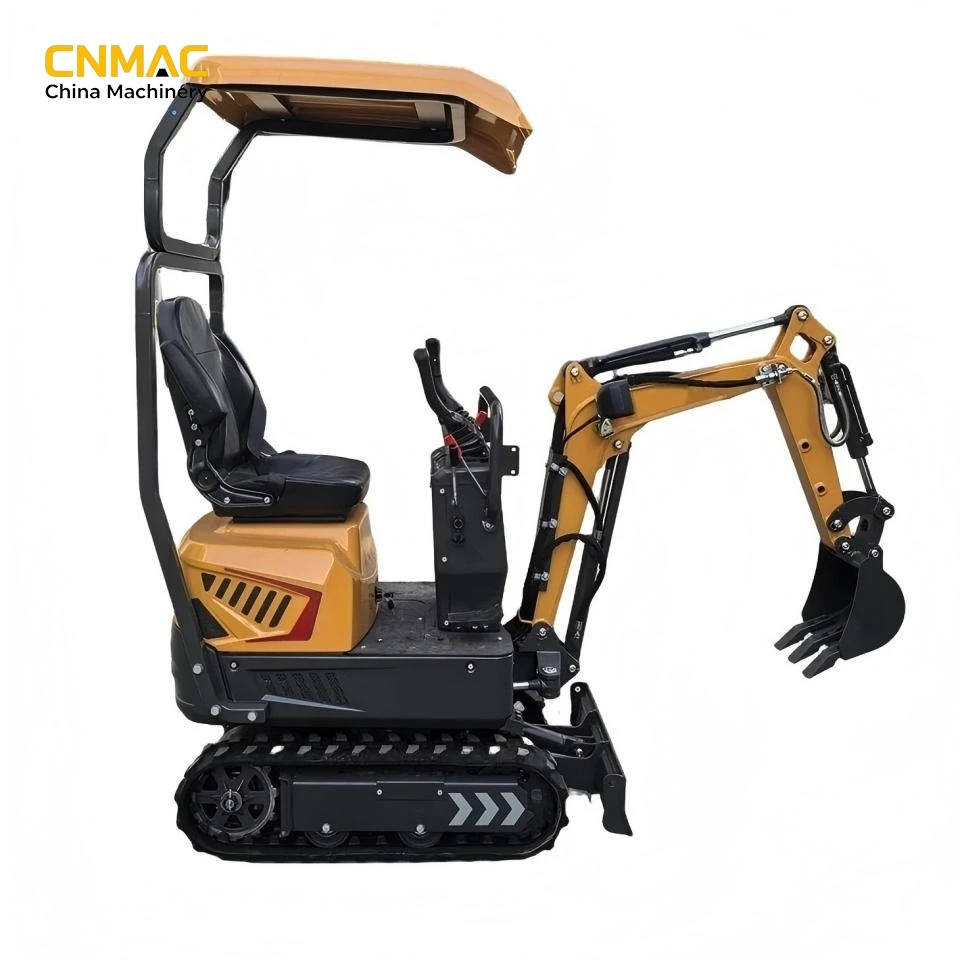

The smallest JIAHE crawler excavator, the JH8006, features a powerful gasoline engine and zero-tail design.Ideal for tight spaces and light-duty work. With a 600 kg operating weight and a slim 700 mm width, it easily accesses narrow job sites such as farms, gardens, and indoor projects.
Compact Power:
Longxin G300FA gasoline engine,6.8 kW / 3600rpm, EPA 4 & Euro 5 compliant, perfect for precision work in tight spaces
Reliable Hydraulics:
Equipped with top-brand pump, valves, slewing and driving motors for smooth and consistent performance
Flexible Undercarriage:
Rubber tracks reduce ground damage and provide stability on soft or uneven terrain
Lightweight & Maneuverable:
Open canopy design and minimal footprint allow operation in narrow lanes and indoor sites
Precision Digging:
0.01 m³ bucket capacity enables fine excavation for small-scale projects
Applications
Residential & Urban
Sidewalk repair, landscaping, flowerbed and garden digging
Agriculture & Nursery
Small trenching, orchard maintenance, greenhouse work
Industrial & Light Construction
Pipeline installation, minor site preparation, confined-space excavation
Special Projects
Utility repairs, small-scale renovations, indoor or basement digging
Parameters
| Model | JH8006 | |
|
ENGINE |
Engine Model | Loncin / G300FA |
|
Fuel Injection |
||
|
Four strokes |
||
|
Water cooling |
Air Cooled |
|
|
Turbo-charging |
Normally Aspirated |
|
|
Air to air intercooler |
- |
|
|
No. of cylinders |
- |
|
|
Rated power/speed |
6.8kw/2500rpm |
|
|
Maximum torque/speed |
20.3N/2500rpm |
|
|
Displacement |
0.302L |
|
|
Main performance |
Swing speed |
12r/min |
|
Grade-ability |
35% |
|
|
Bucket digging force |
7.45KN |
|
|
Arm digging force |
4.5KN |
|
|
Maximum tractive force |
3.8*2KN |
|
|
Hydraulic system |
Main pump |
Tianjing xingzou |
|
Rated flow of main pump |
19.4L/Min |
|
|
Main safety valve pressure |
20MPa |
|
|
Undercarriage |
Travel speed(H/L) |
1.8km/h |
|
Ground pressure |
18.5KPa |
|
|
Track roller number |
2*2 |
|
|
Track number |
35 |
|
|
Oil Capacity |
Fuel tank capacity |
5.5L |
|
Hydraulic tank capacity |
8L |
|
|
Engine oil capacity |
0.95L |
|
|
Coolant |
/ |
|
|
Final drive |
/ |
|
|
Main Dimensions

|
||
|
MACHINE SIZE |
Overall length |
2235mm |
|
Overall width |
700mm |
|
|
Overall height |
1619mm |
|
|
Overall height(cab top) |
2117mm |
|
|
Counter weight clearance |
376mm |
|
|
Min.ground clearance |
160/52mm |
|
|
Min.tail swing radius |
619mm |
|
|
Track ground length |
773mm |
|
|
Track length |
1081mm |
|
|
Track gauge |
550mm |
|
|
Track width |
150mm |
|
|
Track shoes width(std) |
150mm |
|
|
Turn-able width |
700mm |
|
|
WORKING RANGE |
Max.digging height |
1863mm |
|
Max.dumping height |
1257mm |
|
|
Max.digging depth |
978mm |
|
|
Max.vertical wall digging depth |
601mm |
|
|
Max.digging reach |
2260mm |
|
|
Max.digging reach at ground level |
2174mm |
|
|
Min.swing radius |
1110mm |
|
|
Min.height at min.swing radius |
2117/1619mm |
|
|
Counter weight height |
376mm |
|
|
Ground length(Transportation) |
2183mm |
|
|
Standard |
Length of boom |
1010mm |
|
Length of arm |
545mm |
|
|
Bucket capacity |
0.01m³ |
|
