China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 4t mini excavator | jh8035 in China. With abundant experience, we warmly welcome you to buy cheap 4t mini excavator | jh8035 made in China here from our factory. For price consultation, contact us.
Key Features
Comfortable Driving Experience
Fully enclosed AC cab meets ROPS/FOPS standards. Spacious, low noise, comfortable for long working hours.
Efficient Power & Hydraulic System
Separate engine & cooling design for better heat dissipation. Hydraulic pilot control, load-sensitive pump for precision, efficiency and energy saving.
Multi-function Attachment
Quick-change system & dual-circuit hydraulics, compatible with 20+ attachments.

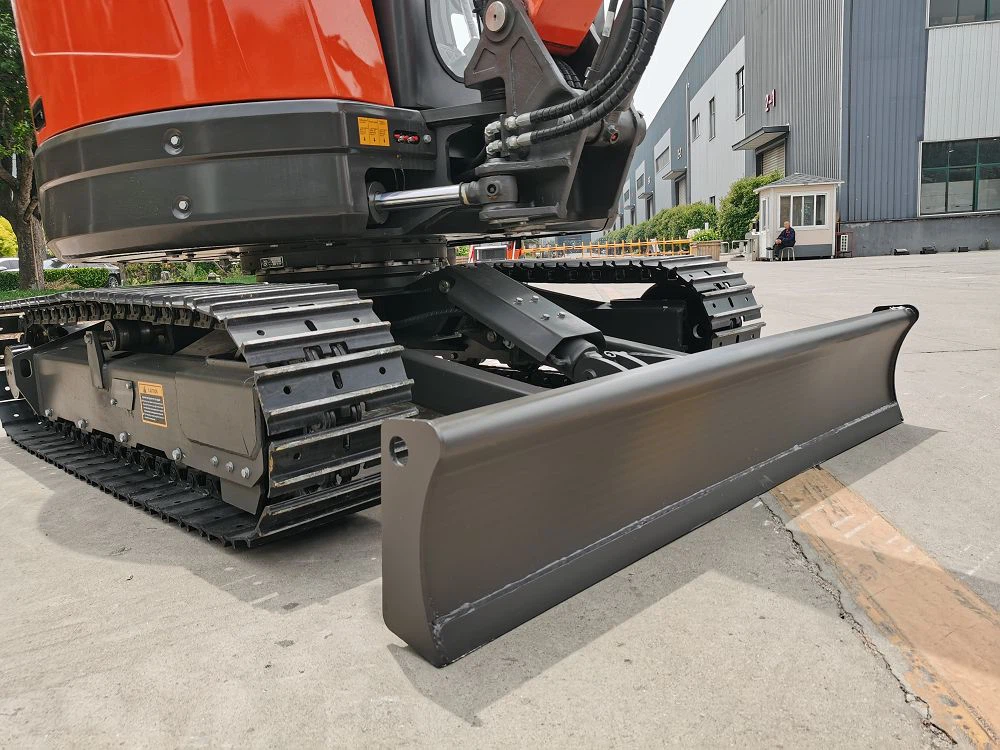

Durable Structure
High-strength walking frame, stable performance on rough terrain. Optional wear-resistant steel tracks for long service life.
Applications
Super projects:
Bridges, pipe corridors, airport runways.
Construction:
Foundation excavation, steel structure
Installation.Agriculture & forestry:
Farmland, orchard management.
Industry & special:
Port handling, mining assistance.
Military:
Field fortifications, positions, outposts.
Parameters
| Model | JH8035 | |
|
>>>> SPECIFICATIONS: |
||
|
ENGINE |
Emission Standard |
Euro V /EPA |
|
Make /Model |
KUBOTA/D1703 |
|
|
Power/Rotation speed |
18.2kw(25HP)@2200rpm |
|
|
Number of cylinder |
3 |
|
|
Type |
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated |
|
|
Max.torque |
97.4N.m/1500rpm |
|
|
Displacement |
1.642L |
|
|

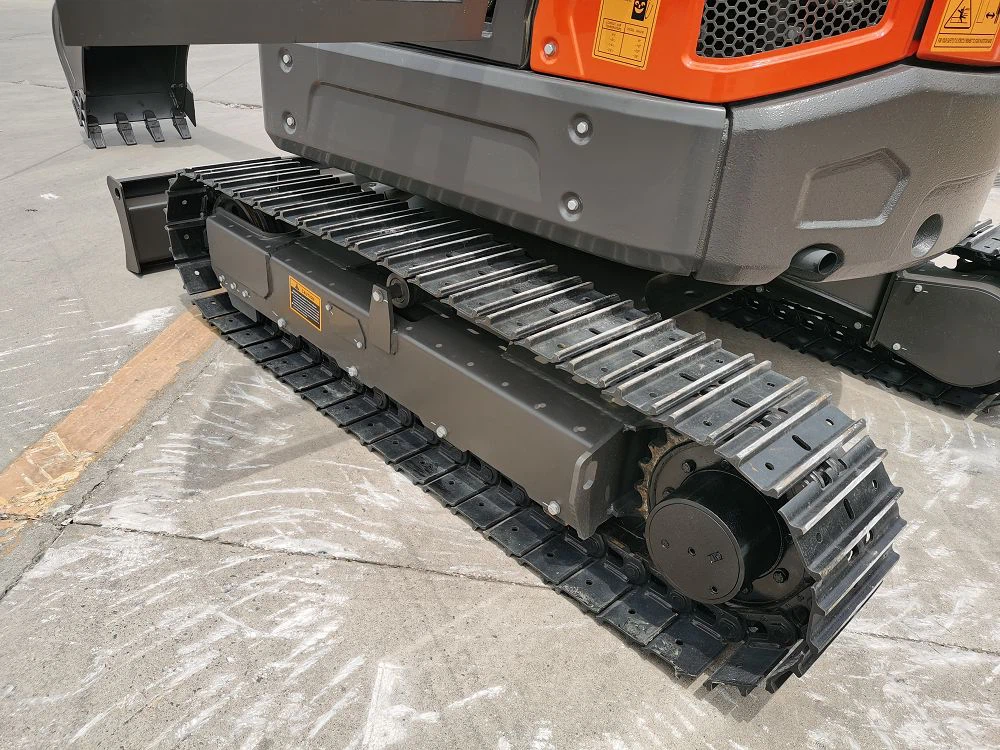

TRACK SYSTEM |
Maximum Travel speed(High-Low speed) |
4.4/2.4km/h |
|
Width of track shoe(Rubber ) |
300mm |
|
|
Carrier roller(one side) |
1 |
|
|
Support wheel(one side) |
3 |
|
|
PERFORMANCE PARAMETER |
Standard Bucket capacity |
0.12m³ |
|
Swing speed |
12rpm |
|
|
Maximum Grade ability |
58%(30°) |
|
|
Ground pressure |
32Kpa |
|
|
Max. Bucket digging force |
30.4KN |
|
|
Max. Arm digging force |
18.2KN |
|
|
Hydraulic system pressure |
22.5Mpa |
|
|
Machine weight |
3810kg |
|
|
Boom length |
2535mm |
|
|
Arm length |
1400mm |
|
|
Fuel tank capacity |
40L |
|
|
Hydraulic oil tank capacity |
44L |
|
|
Engine oil capacity |
7L |
|
|
Radiator capacity |
3.8L |
|
|
Final drive |
2*0.7L |
|

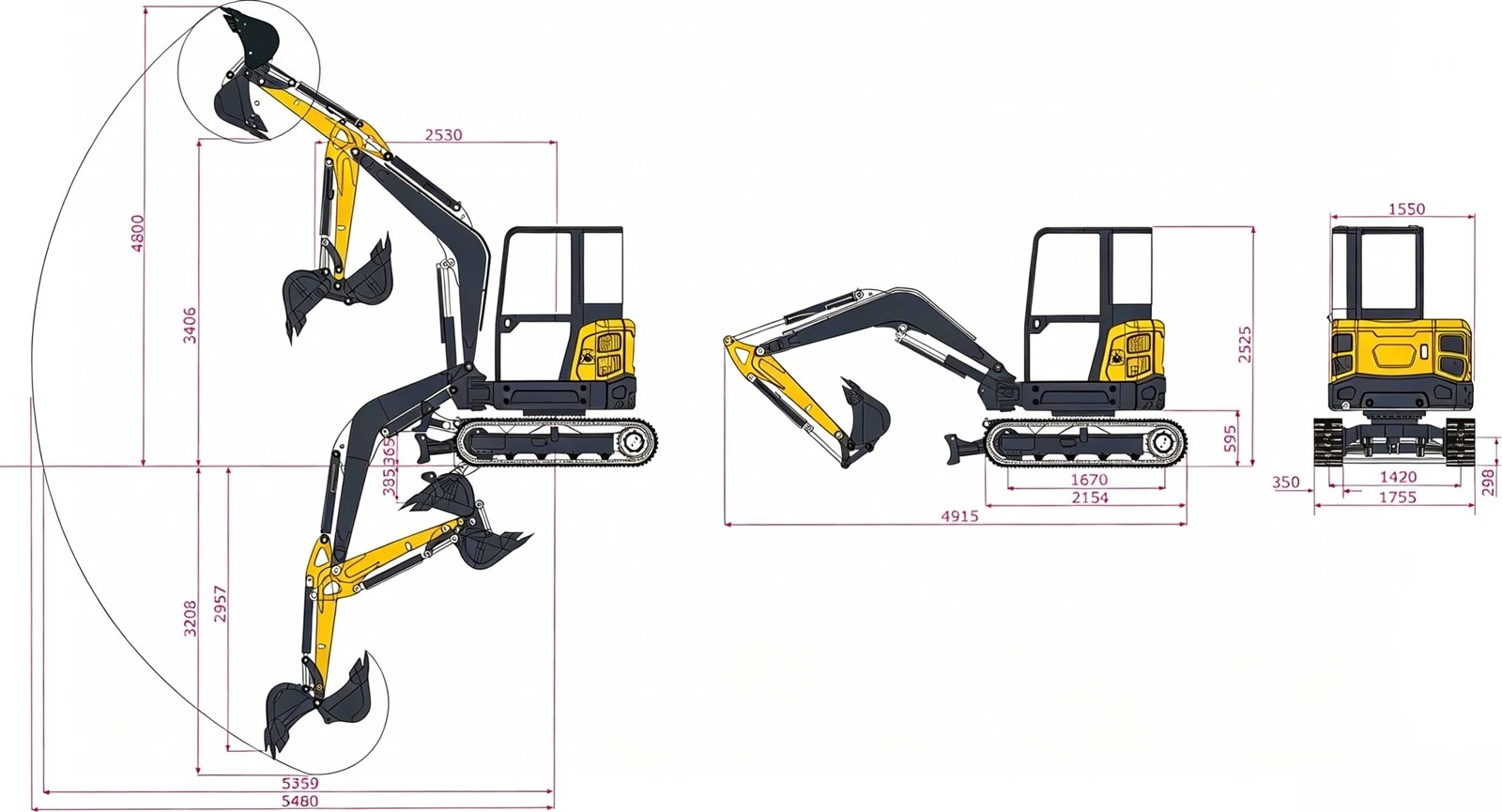

Main Dimensions
|
MACHINE SIZE |
Overall dimension (L*W*H) |
4915mm*1720mm*2525mm |
|
Axle base(Track length on ground) |
1670mm |
|
|
Length of rubber trac |
2154mm |
|
|
Track gauge |
1420mm |
|
|
Min.Ground clearance |
295mm |
|
|
Swing radius at tail |
860mm |
|
|
Swing radius at front |
2538mm |
|
|
Height of blade |
350mm |
|
|

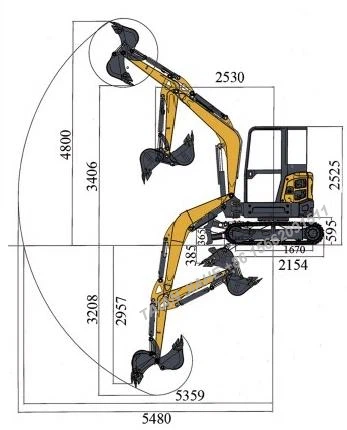

WORKING RANGE |
Maximum Digging height |
4800mm |
|
Maximum Dumping height |
3406mm |
|
|
Maximum Digging depth |
3208mm |
|
|
Max. Vertical digging depth |
2957mm |
|
|
Maximum Digging distance(working radius) |
5480mm |
|
|
Maximum digging distance (on ground) |
5359mm |
|
|
Minimum swing radius |
2530mm |
|
|
Max.height when min.swing radius |
3655mm |
|
|
Maximum Lifting height of blade |
365mm |
|
|
Maximum Cutting depth of blade |
385mm |
|
|
Boom swing angle(Left/Right) |
55°/65° |
