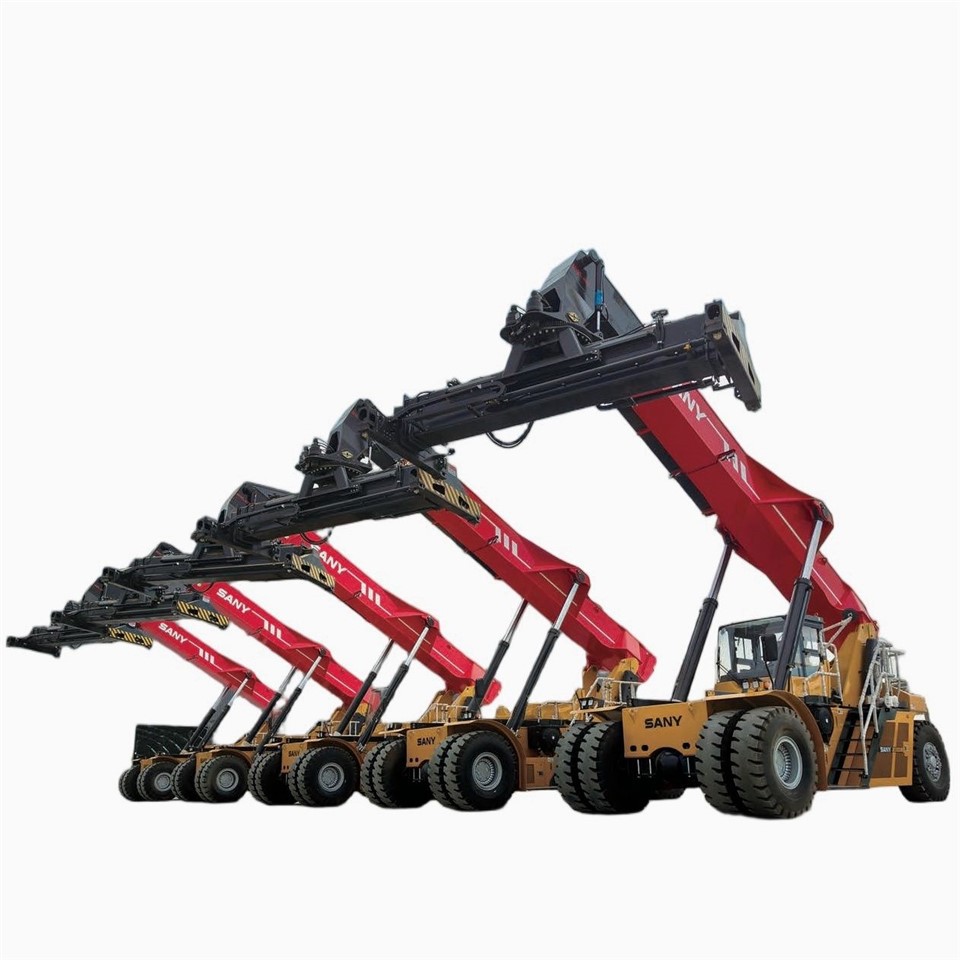

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of Container Reach Stacker in China. With abundant experience, we warmly welcome you to buy cheap Container Reach Stacker made in China here from our factory. For price consultation, contact us.
Fuel and Maintenance Savings
■ 15% lower fuel use
■ Long-life filters reduce costs
Smooth Control
■ Multi-valve spreader system
■ Fast response <300ms
Proven Durability
■Structure tested for 30,000 hours fatigue life
Product Parameters
|
Technical Parameter |
Configuration Parameter |
||||
|
ITEM |
UNIT |
SRSC45V series |
CONFIGURATION |
UNIT |
SRSC45V series |
|
Max. Lifting Speed (0/full load) |
mm/s |
420/250 |
Type |
- |
TAD191VE |
|
Max. Lowering Speed (0/full load) |
mm/s |
360/300 |
Rated Capacity |
kW/rpm |
265/2100 |
|
Max. Traveling Speed (0/full load) |
km/h |
25/21 |
Max Torque |
Nm/rpm |
1780/1400 |
|
Gradeability (0/full load) |
% |
39/32 |
Emission Standard |
- |
StageⅢ |
|
Hydraulic System Working Pressure |
bar |
260 |
Type |
- |
X12 |
|
Rated Capacity |
kW/rpm |
277/2100 |
|||
|
Overall Weight |
t |
71 |
Max Torque |
Nm/rpm |
1850/200~1600 |
|
Rated Load |
t |
45 |
Emission Standard |
- |
StageⅢ |
|
Stack Layer |
- |
5 |
Type |
- |
Cummins QSL9T4F |
|
Max. Lift Height Standard |
mm |
15100 |
Rated capacity |
kW/rpm |
272/2100 |
|
Max. Boom Elevation |
deg |
0~60 |
MaxTorque |
N·m/rpm |
1795/1400 |
|
Overall Length (L) |
mm |
11320 |
Emission Standard |
- |
Tier 4F |
|
Wheel Base (L1) |
mm |
6000 |
Type |
- |
TAD191VE |
|
Overall Height(H) (retract/extend) |
mm |
4770 |
Rated Capacity |
kW/rpm |
265/2100 |
|
Max Torque |
N·m/rpm |
1795/1400 |
|||
|
Min. Ground Clearance (H1) |
mm |
300~350 |
Emission Standard |
- |
Stage V |
|
Overall Width (W) |
mm |
6055-12185 |
Transmission Type |
- |
15,SHR36432-35 |
|
Counterweight Sideways (E) |
mm |
- |
Drive Axle Type |
- |
15,7TE30510-7 |
|
Main Valve |
- |
Kessler D102 |
|||
|
Front Gauge (T1) |
mm |
3033 |
Main Pump |
- |
XWF-S10 |
|
Rear Gauge (T2) |
mm |
2790 |
Model |
- |
Parker |
|
Min. Turning Radius |
mm |
8000 |
Lateral Move |
mm |
+800 |
|
Aisle Width For 20'container |
mm |
11300 |
Rotate Angle |
deg |
105°~195° |
|
Aisle Width For 40'container |
mm |
13600 |
Tilt Angle |
deg |
±5 |
|
Self-Weight |
t |
71 |
|||
|
Suitable Fo |
- |
ISO20/40/45/Container |
|||
|
Tires |
- |
18.00-25 |
|||
