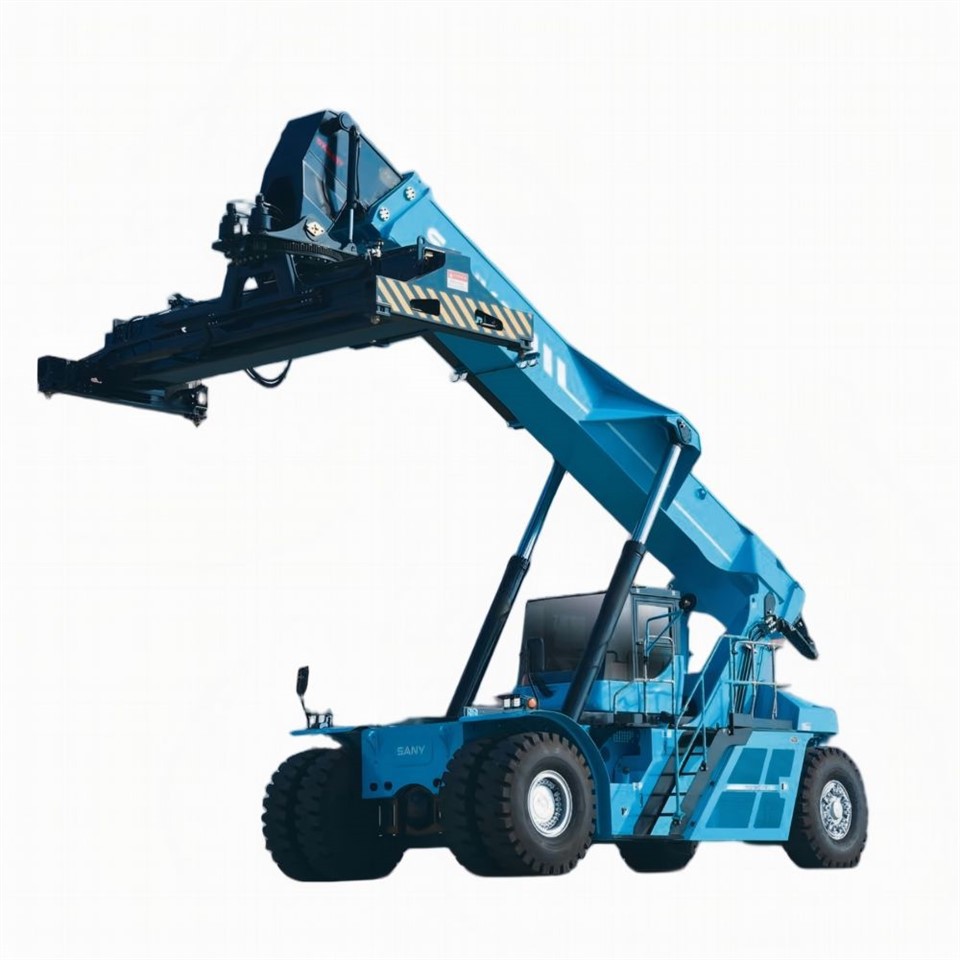

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 45 Ton Reach Stacker in China. With abundant experience, we warmly welcome you to buy cheap 45 Ton Reach Stacker made in China here from our factory. For price consultation, contact us.
Efficient Range Extender
■ Specialized engine with 4.03 kWh/L fuel efficiency
Extended Range, Lower Fuel Use
■ 75kW power supports heavy-duty work
■ Fuel use only 13L/h, 20% less than traditional models
Product Parameters
|
Technical Parameter |
||
|
ITEM |
UNIT |
SRSC45E2A (Range-Extended) |
|
Max. Lifting Speed (0/full load) |
mm/s |
420/250 |
|
Max. Lowering Speed (0/full load) |
mm/s |
360/300 |
|
Max. Traveling Speed (0/full load) |
km/h |
20/14 |
|
Gradeability (0/full load) |
% |
21/14 |
|
Hydraulic System Working Pressure |
bar |
350 |
|
Overall Weight |
t |
71 |
|
Rated Load |
t |
45 |
|
Stack Layer |
- |
5 |
|
Max. Lift Height Standard |
mm |
15100 |
|
Max. Boom Elevation |
deg |
0-60 |
|
Overall Length (L) |
mm |
11320 |
|
Wheel Base (L1) |
mm |
6000 |
|
Overall Height (H)-retract/extend) |
mm |
4850 |
|
Min. Ground Clearance (H1) |
mm |
270-330 |
|
Overall Width (W) |
mm |
6053-12185 |
|
Front Gauge (T1) |
mm |
3033 |
|
Rear Gauge (T2) |
mm |
2790 |
|
Min. Turning Radius (R) |
mm |
8000 |
|
Aisle Width For 20/container (A1) |
mm |
11300 |
|
Aisle Width For 40/container (A2) |
mm |
13600 |
|
Configuration Parameter |
||||
|
CONFIGURATION |
UNIT |
SRSC45E2A |
||
|
Energy Type |
- |
Range-Extended |
||
|
Battery Capacity (kWh) |
kWh |
282 |
||
|
Power Battery |
Battery Type |
- |
LFP |
|
|
Nominal Voltage |
V |
618 |
||
|
Thermal Management |
- |
Heating:Heating Film |
||
|
Electric Motor |
Type |
- |
PMSM |
|
|
Output Torque (Rated/peak) |
Nm/rpm |
2040(Rated) 3860(peak) |
||
|
Output power (Rated/peak) |
kW |
171(Rated) 310(peak) |
||
|
Output rotate speed (Rated/peak) |
RPM |
800(Rated) 2800(peak) |
||
|
Cooling Type |
- |
Water Cooling |
||
|
Transmission Type |
- |
Sany Dwf-50/101.287 |
||
|
Range Extender |
Fsg Motor Power |
kW |
75 |
|
|
Cooling Method |
- |
Water Cooling |
||
|
Engine Power |
kW |
92 |
||
|
Emission Standard |
- |
Nationlly |
||
