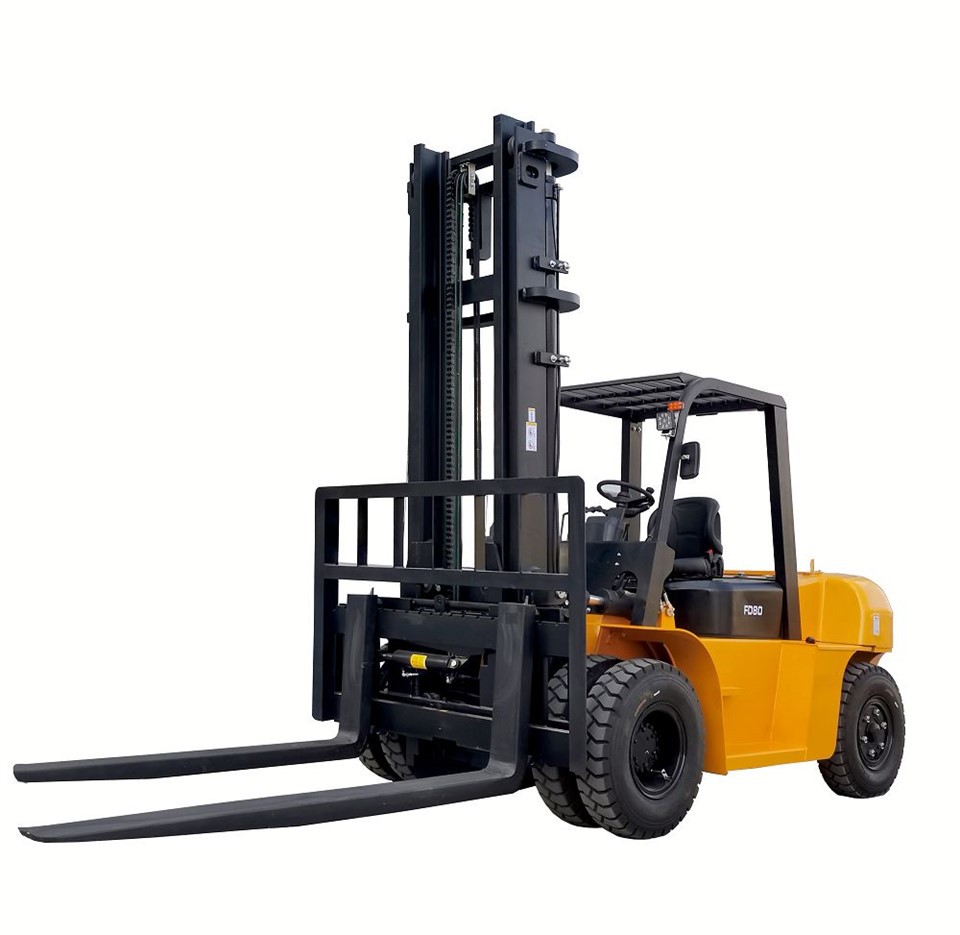

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 8t diesel forklift | fd80 in China. With abundant experience, we warmly welcome you to buy cheap 8t diesel forklift | fd80 made in China here from our factory. For price consultation, contact us.
Product Introduction
1. Convenient Maintenance
The hood opens up to 70°, providing a large maintenance space for efficient engine and circuit inspection, greatly shortening service time.
2. Intelligent Display
Intelligent LCD instrument shows real-time data such as speed, fuel consumption and fault codes via CAN bus, making operation status clear at a glance.
3. Optimized Cooling System
Independent layout of intercooler, water radiator and oil radiator avoids heat interference, lowers component temperature and improves stability.
4. Engine Protection & Low Noise
Dual dust-proof design enhances combustion efficiency and engine life. Sound insulation and low-resistance exhaust reduce noise and power loss.
5. Safety Start Protection
Gear start lock prevents starting when in gear, avoiding misoperation damage, ensuring safety and extending transmission life.
6. Application Scenarios
Suitable for factories, warehouses, logistics centers and workshops, providing stable, safe and efficient material handling.
Parameters
|
Model |
|
FD80 |
||
|
Power Type |
|
Diesel |
||
|
Rated Capacity |
kg |
8000 |
||
|
Load Centre |
mm |
600 |
||
|
Lift Height |
mm |
3000 |
||
|
Fork Size(L×W×T) |
mm |
1220×150×70 |
||
|
Mast Tilt Angle(F/R) |
Deg |
6°/12° |
||
|
Front Overhang (Wheel center to fork face) |
mm |
595 |
||
|
Ground Clearance(Bottom of mast) |
mm |
200 |
||
|
Turning Radius (outside) |
mm |
3350 |
||
|
Max.Gradeability (No load/Full load) |
% |
20 |
||
|
Wheelbase |
mm |
2250 |
||
|
Service weight |
kg |
10350 |
||
|
Overall Dimension |
Length to face of fork(Without fork) |
mm |
3565 |
|
|
Overall Width |
mm |
2010 |
||
|
Mast Lowered Height |
mm |
2500 |
||
|
Mast Extended Height(With backrest) |
mm |
4415 |
||
|
Overhead Guard Height |
mm |
2430 |
||
|
|
Travel (Full load) |
km/h |
28 |
|
|
Lifting (Full load) |
mm/s |
430 |
||
|
Tire |
Front |
mm |
8.25-15-18PR |
|
|
Rear |
mm |
8.25-15-18PR |
||
|
Battery |
Voltage/Capacity |
V/Ah |
(12/80) x 2 |
|
|
|
Model |
|
6BG1-02 |
6110 |
|
Manufacturer |
|
ISUZU |
XICHAI |
|
|
Rated output/r.p.m. |
kw |
82.4/2000 |
83/2000 |
|
|
Rated torque/r.p.m. |
N·m |
416/1600 |
450/1400-1500 |
|
|
No.of Cylinder |
|
6 |
6 |
|
|
No.of Cylinder |
mm |
105×125 |
110x125 |
|
|
Displacement |
cc |
6494 |
7120 |
|
|
Fuel Tank Capacity |
L |
125 |
125 |
|
|
Transmission |
Type |
|
Hydraulic |
Hydraulic |
|
Stage(FWD/RVS) |
|
2/2 |
2/2 |
|
- With technological innovation, our product configuration and parameters will continue to change without notice;
- If there is any doubt, the specific confirmation of our international trade sales shall prevail;
