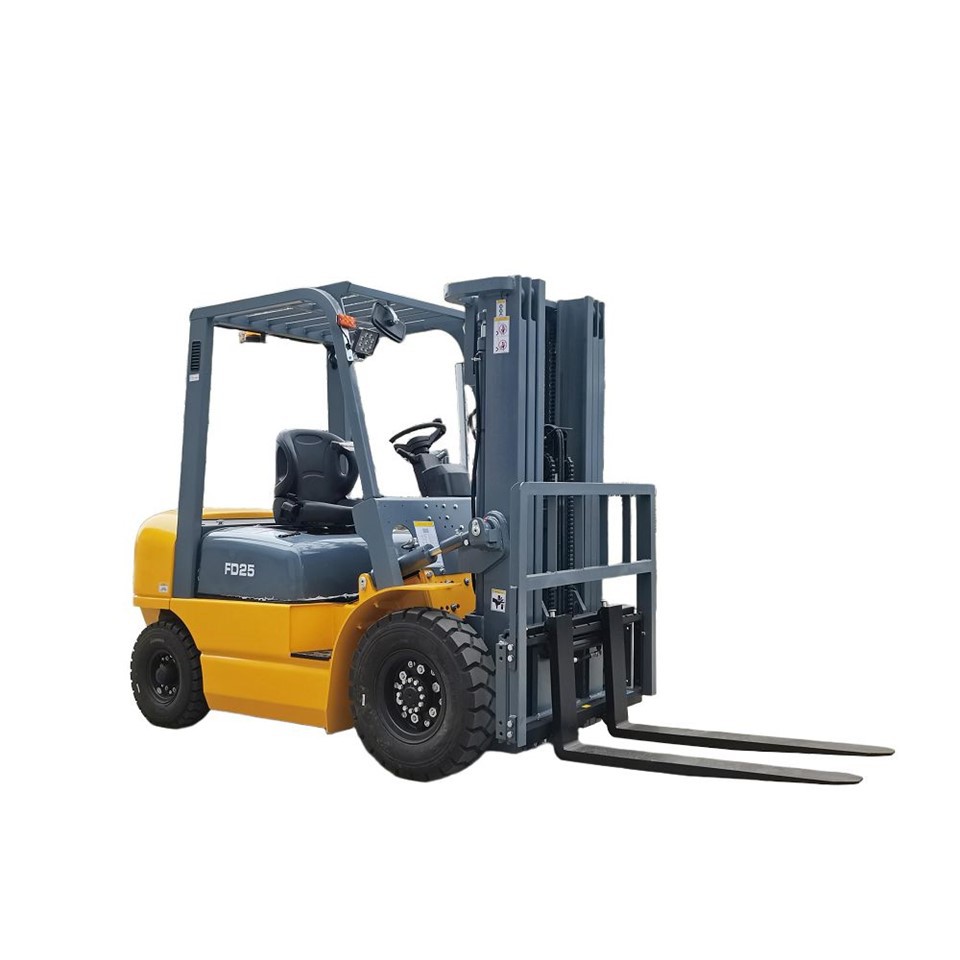

2.5 Ton Diesel Forklift- FD25
1. Upgraded Intake System
The FD25 uses a high independent channel intake structure, effectively blocking dust and increasing air intake for more complete combustion and stronger power.
2. Optimized Cooling System
Its cooling system features independent intercooler, water radiator and oil radiator, forming an efficient matrix to enhance stability and durability of core components.
3. Reliable Braking System
Equipped with a high-performance braking system with vacuum assist and full hydraulic assist, ensuring precise braking and higher safety in daily and emergency use.
4. Efficient & Energy-Saving Performance
Powered by a high-pressure common rail engine with strong output, good cold start and low failure rate. The load-sensitive hydraulic system supports full-load lifting at idle, lowering fuel consumption for high efficiency and economy.
5. Application Scenarios
Ideal for factories, warehouses, logistics centers and other industrial sites, suitable for medium-load material handling and long-term stable operation.
Parameters
|
Model |
|
FD25 |
||
|
Power Type |
|
Diesel |
||
|
Rated Capacity |
kg |
2500 |
||
|
Load Centre |
mm |
500 |
||
|
Lift Height |
mm |
3000 |
||
|
Fork Size(L×W×T ) |
mm |
1070×120×40 |
||
|
Mast Tilt Angle(F/R) |
Deg |
6°/12° |
||
|
Front Overhang (Wheel center to fork face) |
mm |
465 |
||
|
Ground Clearance(Bottom of mast) |
mm |
110 |
||
|
Turning Radius (outside) |
mm |
2310 |
||
|
Max.Gradeability (No load/Full load) |
% |
20 |
||
|
Wheelbase |
mm |
1600 |
||
|
Service weight |
kg |
3790 |
||
|
Overall Dimension |
Length to face of fork(Without fork) |
mm |
2595 |
|
|
Overall Width |
mm |
1150 |
||
|
Mast Lowered Height |
mm |
2070 |
||
|
Mast Extended Height(With backrest) |
mm |
4070 |
||
|
Overhead Guard Height |
mm |
2070 |
||
|
Speed |
Travel (Full load) |
km/h |
19 |
|
|
Lifting (Full load) |
mm/s |
530 |
||
|
Tire |
Front |
mm |
7.00-12-12PR |
|
|
Rear |
mm |
6.00-9-10PR |
||
|
Battery |
Voltage/Capacity |
V/Ah |
12/80 |
|
|
Engine |
Model |
|
C240 |
C490 |
|
Manufacture |
|
ISUZU |
XINCHAI |
|
|
Rated output/r.p.m. |
kw |
35.4/2500 |
40/2650 |
|
|
Rated torque/r.p.m. |
N·m |
137.7/1800 |
160/1600-2000 |
|
|
No.of Cylinder |
|
4 |
4 |
|
|
Bore×Stroke |
mm |
86×102 |
90x105 |
|
|
Displacement |
cc |
2369 |
2670 |
|
|
Fuel Tank Capacity |
L |
60 |
45 |
|
|
Transmission |
Type |
|
Hydraulic |
Hydraulic |
|
Stage(FWD/RVS) |
|
1/1 |
1/1 |
|
- With technological innovation, our product configuration and parameters will continue to change without notice;
- If there is any doubt, the specific confirmation of our international trade sales shall prevail;
