What Is a Multifunctional Anchor Drilling Rig?

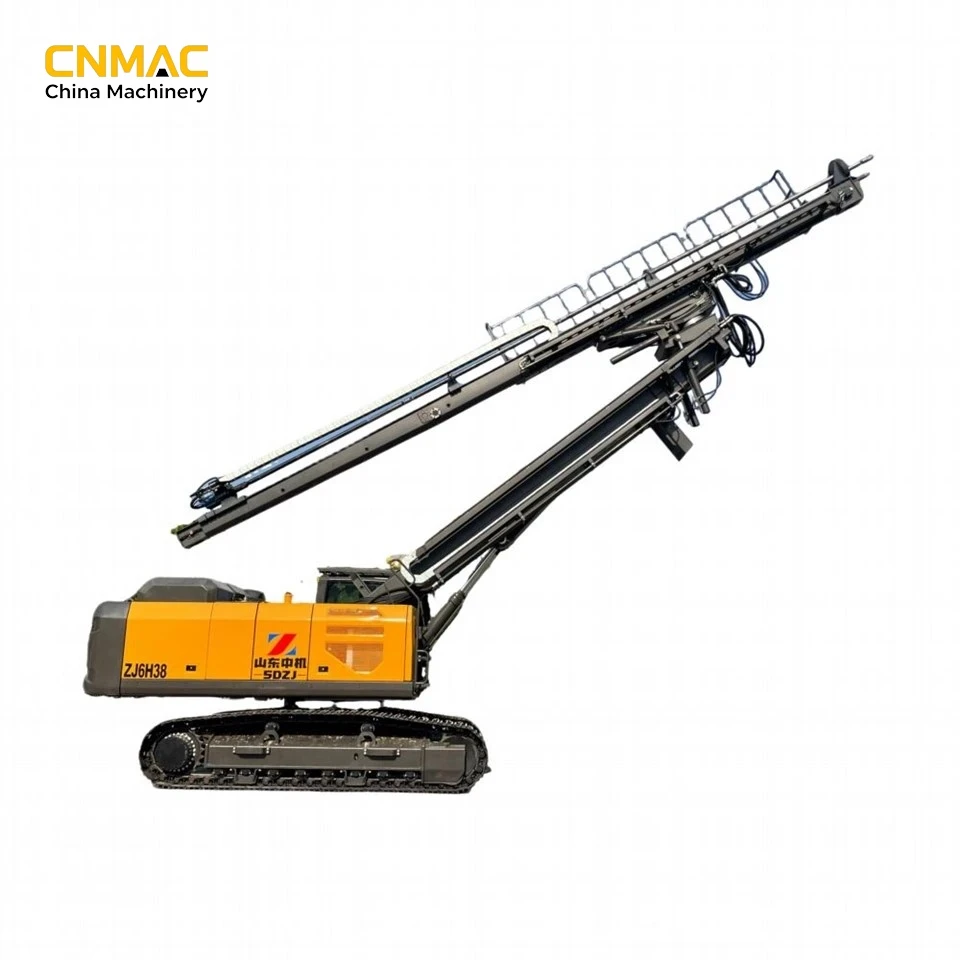

JIAHE Long-Reach Slope Stabilization Drilling Rig is specially designed for soil nailing, slope stabilization, ground anchoring and reinforced shotcrete applications.
With its long-reach drilling boom, crawler chassis and multi-angle drilling capability, the rig can operate from a stable position at the slope toe or roadside platform while reaching high and difficult drilling points on steep slopes.
The typical stabilization process is:
Drill holes into the slope → Install steel reinforcement bars / soil nails → Inject grout → Install reinforcement mesh → Apply shotcrete or concrete.
With a maximum drilling depth of up to 38 m, the rig is suitable for a wide range of geotechnical projects, including highway and railway slope stabilization, landslide prevention, riverbank and embankment reinforcement, foundation pit support, tunnel portal reinforcement and dam protection.
By eliminating the need to position the entire machine directly on steep slopes, JIAHE's long-reach design provides a safer and more flexible solution for challenging slope reinforcement projects.
Key Features & Advantages
1.Multi-Angle Boom for Flexible Drilling
The rotatable boom allows vertical, inclined, and horizontal drilling, making it suitable for various terrains and complex slope conditions.
2. High-Pressure Air Compressor with Central Water Supply
Equipped with a high-pressure screw compressor and center-rod water feeding system to ensure:
3.Fast chip removal to prevent bit jamming
Reduced dust for environmentally sensitive or urban areas
4.Hydraulic Clamping with Quick Rod Change
The hydraulic clamping system enables fast rod replacement, allowing single-pass drilling up to 10 m and total depths up to 20 m, improving efficiency and reducing downtime.
5.Safe, Stable, and Easy Operation
Features include crawler mobility, remote or cabin control, and overload protection, ensuring stable performance and operator safety.
Typical Applications
The multifunctional anchor drilling rig is widely used in geotechnical reinforcement and foundation engineering, especially in complex terrain and unstable ground conditions.
Slope Stabilization & Landslide Control
Drilling anchor holes for rock bolts, soil nails, and anchor cables to stabilize slopes along highways, railways, and mountainous areas.
Foundation Pit & Retaining Wall Support
Used in deep excavation projects to install anchoring systems that reinforce retaining walls and ensure excavation safety.
Tunnel & Underground Engineering
Suitable for pipe-roof drilling, forepoling, and rock reinforcement in tunnel construction and underground infrastructure projects.
Hydropower & Water Conservancy Projects
Applied in dam foundation reinforcement, slope protection, and anchor drilling for hydropower stations and water management structures.
Urban Construction & Infrastructure
Ideal for foundation reinforcement in hillside developments, bridges, and complex urban construction sites where space and terrain are challenging.

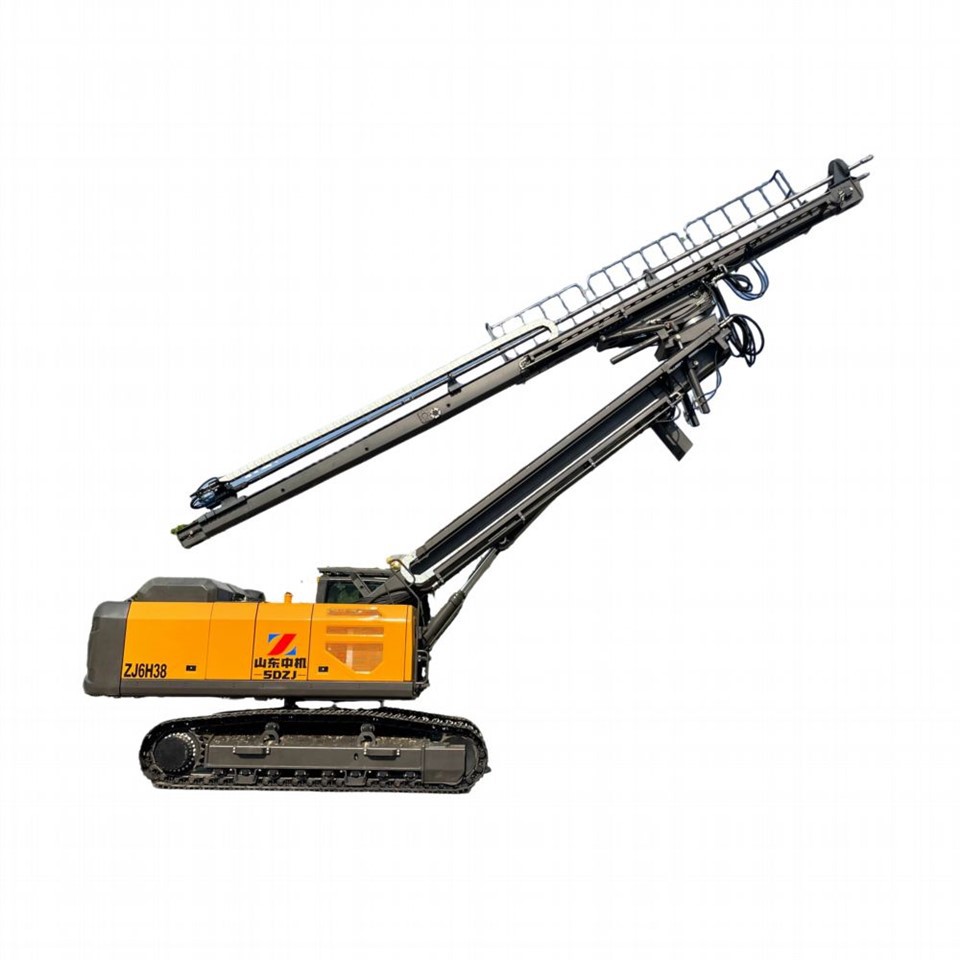

ZJ6H38
Multifunctional Anchor Drilling Rig
Technical Parameters
|
Model |
|
ZJ6H38 |
|
|
IV Cummins National IV |
B6.7CSU300C |
|
V Cummins Euro V |
B6.7CU300C |
|
|
V Deutz EuroⅤ |
TCDI 8.16 |
|
|
II Cummins National II |
6CTAA8.3-C260 |
|
|
|
Main Pump Flow |
2x247L/min |
|
Main System Pressure |
32MPa |
|
|
Pilot System Pressure |
4MPa |
|
|
|
Working Pressure |
10bar |
|
Discharge Volume |
10m3/min |
|
Model |
|
ZJ6H38 |
|
|
Hole Diameter Range |
47~180mm |
|
Drilling Depth |
20m |
|
|
Pipe Diameter |
65/76mm |
|
|
Maximum Hole Height |
18m-21.5M |
|
|
Hole Depth At One Time |
10.8m |
|
|
Maximum Propulsion Force |
43kN |
|
|
Maximum Lifting Force |
50kN |
|
|
Maximum Output Torque Of Drill Pipe |
40000/60000Nm |
|
|
Weight Of The Whole Machine |
38650kg |
|
|
Travel Speed High/Low |
3.8/2km/h |
|
|
Maximum Climbing Degree |
35° |
|
|
(LxWxH)Overall Dimensions (LxWxH) |
16000x3190x3400mm |
|
|
Width Of Track Plate |
600mm |
|
|
Wheelbase |
4090mm |
|
|
Track Distance |
2590mm |
▲ With technological innovation our product configuration and parameters will continue to change without notice.
