Product Introduction

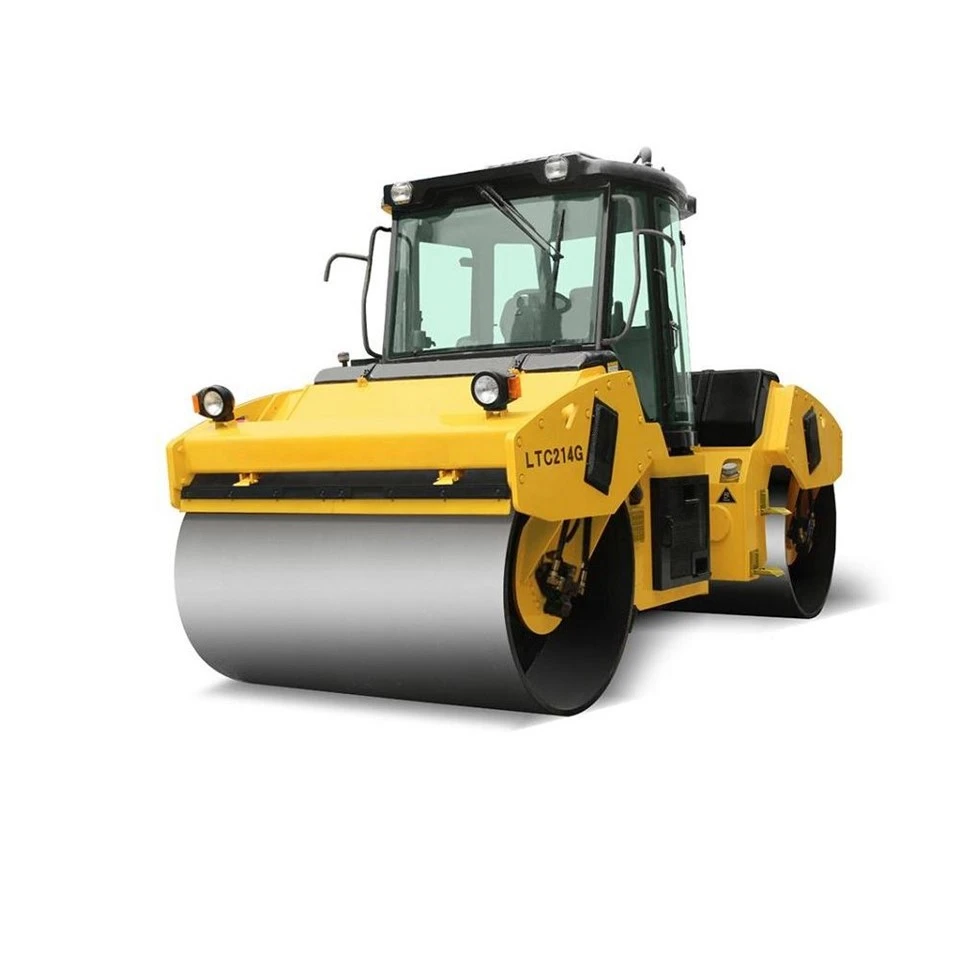

LTC214 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.
Main Characteristic
- 14T rollers are core equipment for highway base and asphalt compaction
- High centrifugal force (2×160 kN) ensures deep compaction with fewer passes
- Dual vibration system allows multi-layer application with one machine
- Premium setup (Cummins + Danfoss) increases reliability and global competitiveness
- Larger drum width (2100 mm) improves job efficiency and coverage
|
Model |
LTC214 |
|
Operating mass |
14000kg |
|
Font axle load |
7000kg |
|
Rear axle load |
7000kg |
|
Static linear load |
333N/cm |
|
Form of frame |
fork-type |
|
Type of water spray |
pressure |
|
Water tank capacity |
600x2 L |
|
Fuel tank capacity |
154 L |
|
Hydraulic oil tank capacity |
65 L |
|
Vibration amplitude |
0.8(High)/0.4(Low)mm |
|
Vibration frequency |
46(high)/40(low)Hz |
|
Centrifugal force |
160x2(high)/90x2(low)Kn |
|
Travel Speed |
0-10Km/h |
|
Steering angle |
±30° |
|
Electrical voltage |
24V |
|
Grade ability |
40% |
|
Turning radius |
7000mm |
|
Overall dimension (LxWxH) |
5060x2250x3300mm |
|
Vibration drum diameter |
1350mm |
|
Drum width |
2100mm |
|
Wheel base |
3717mm |
|
Diesel engine power |
110Kw/2300rpm |
|
Diesel engine model |
CUMMINS 6BT5.9 |
|
Ship |
1 unit/40HQ |
|
Optional：Edge cutter,Canopy. |
|
