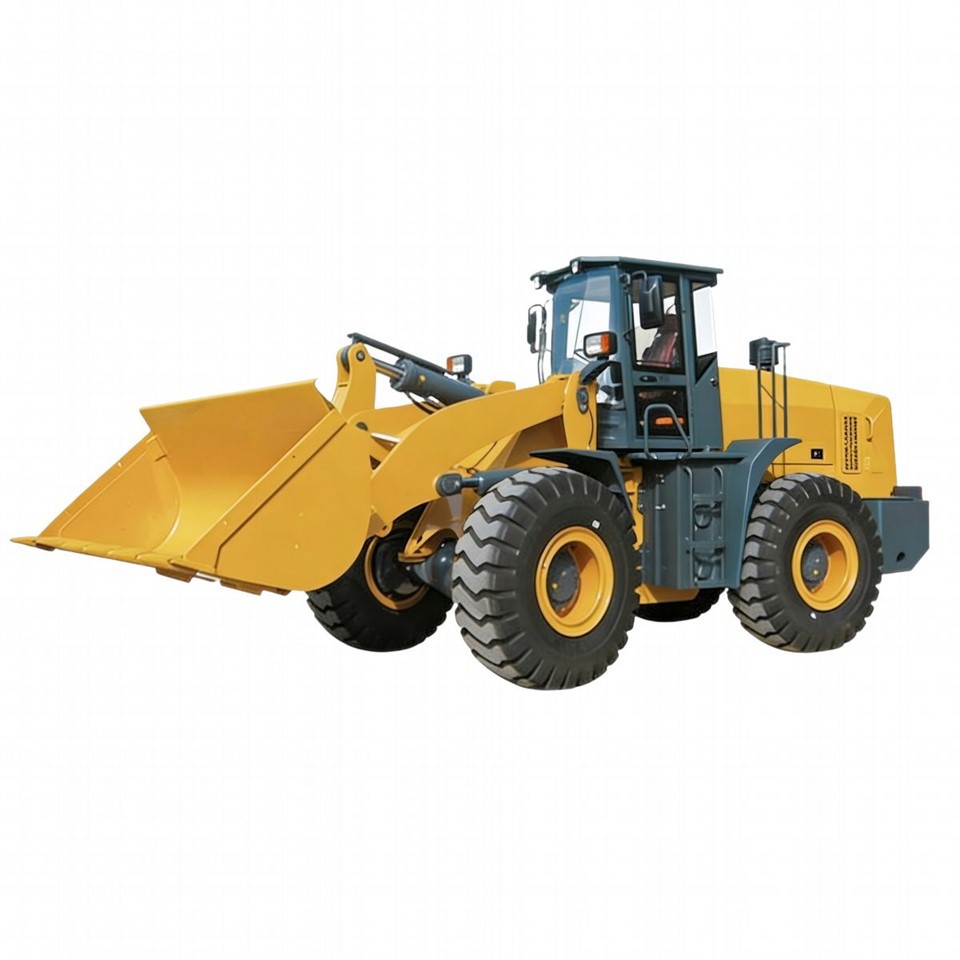

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 5t wheel loader | 656 in China. With abundant experience, we warmly welcome you to buy cheap 5t wheel loader | 656 made in China here from our factory. For price consultation, contact us.
Product Description
Powerful Engine:
Weichai turbocharged diesel engine delivering strong power, fuel efficiency, and high performance.
Heavy-Duty Drivetrain:
Reinforced planetary gearbox and heavy-duty axle ensure high reliability and excellent load capacity.
High-Strength Frame:
Newly designed frame structure using finite element analysis and automated welding for superior strength, load-bearing capacity, and torsion resistance.
Durable Centered Frame:
Large-span center articulation design enhances durability and stability under complex working conditions.
Advanced Hydraulics:
Full hydraulic load-sensing steering with dual-pump confluence system for faster lifting speed, stronger digging force, and smooth, responsive operation.
Upgraded Cabin:
Modern cab with luxury interior, excellent sealing, and panoramic glass for a wider field of view.
Auto Leveling System:
Intelligent automatic leveling simplifies operation, reduces operator fatigue, and improves efficiency.
Reinforced Bucket:
Wear-resistant bucket plate, teeth, and main blade for higher strength and longer service life.
Optional Attachments:
Rock bucket, enlarged bucket, high-dump arm, side-dump bucket, log fork, grass grab, and more to suit different applications.
Parameters
| Model | 656 |
|
Bucket capacity |
2.7m³ |
|
Rated load |
5.0t |
|
Operating weight |
16.6t |
|
Climbing gradient |
≥28° |
|
Breakout force |
≥170kN |
|
Tranction force |
≥155kN |
|
Total time |
10.0s |
|
Engine |
|
|
Type |
WD10G220E21 |
|
Rated power |
162kW |
|
Rated speed |
2200r/min |
|
Max. torque |
850Nm |
|
Total air displacement |
9.726L |
|
Rated fuel consumption rate" ≤215g/(kWh) |
|
|
Transmission system |
|
|
Hydraulic torque conterver |
|
|
Type |
YJSW315-6J01-22 |
|
Torque vcoefficient |
4.4±0.24 |
|
Gearbox |
|
|
Type |
ZL50 |
|
Transmission pressure |
1.2～1.5MPa |
|
Driving axle |
|
|
Reduction ratio |
23.276 |
|
Tyre |
|
|
Specification |
23.5-25 |
|
Tyre pressure |
0.30MPa |
|
Electrical system |
|
|
Voltage |
24V |
|
Battery type |
6-QW-120B |
|
Travel speed |
|
|
Forward gear Ⅰ |
11.5km/h |
|
Forward gear Ⅱ |
36km/h |
|
Reverse gear Ⅰ |
16km/h |
|
Steering system |
|
|
Steering pump displacement" |
80ml/r |
|
Working pressure |
16MPa |
|
Number of steering cylinder-bore×stoke" |
2-φ100×324 |
|
Working hydraulic system |
|
|
Number of lift cylinder-bore×stoke" |
2-φ160×799 |
|
Number of tilt cylinder-bore×stoke" |
1-φ200×563 |
|
Displacement of working pump" |
100ml/r |
|
Working pressure |
16MPa |
|
Distribution valve DF32.2C D32-00 |
|
|
Brake system |
|
|
Driving brake(Foot-brake)" |
|
|
Air-pushing-oil disc brake on four wheels" |
|
|
Parking brake(Hand-brake)" |
|
|
Cable-controlled callper disc brake" |
|
