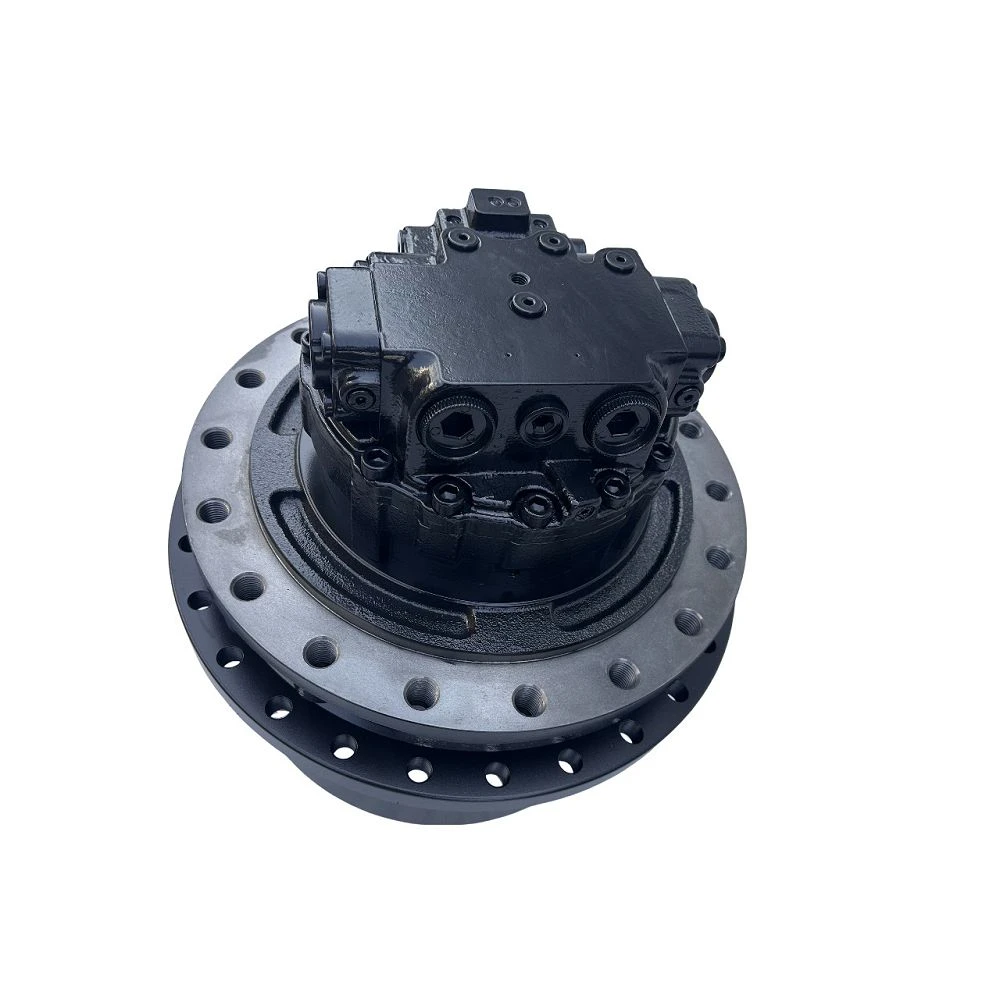

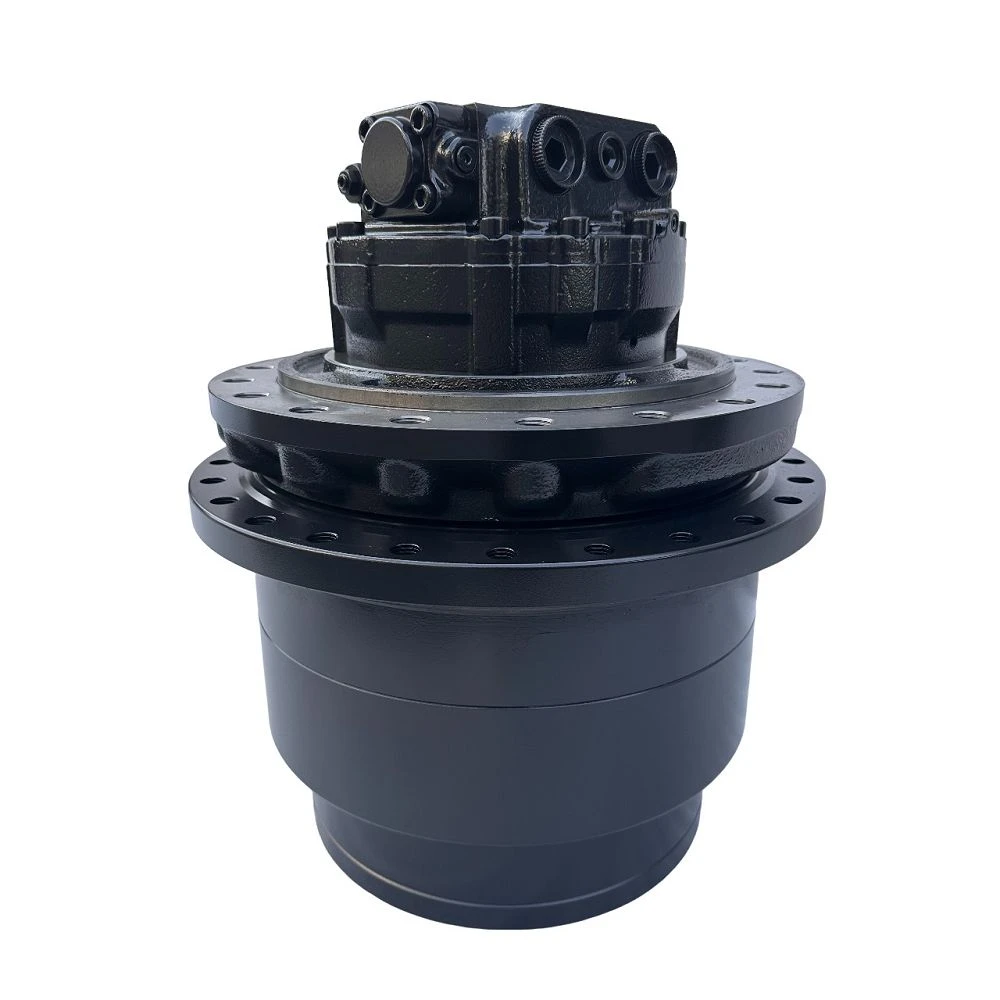

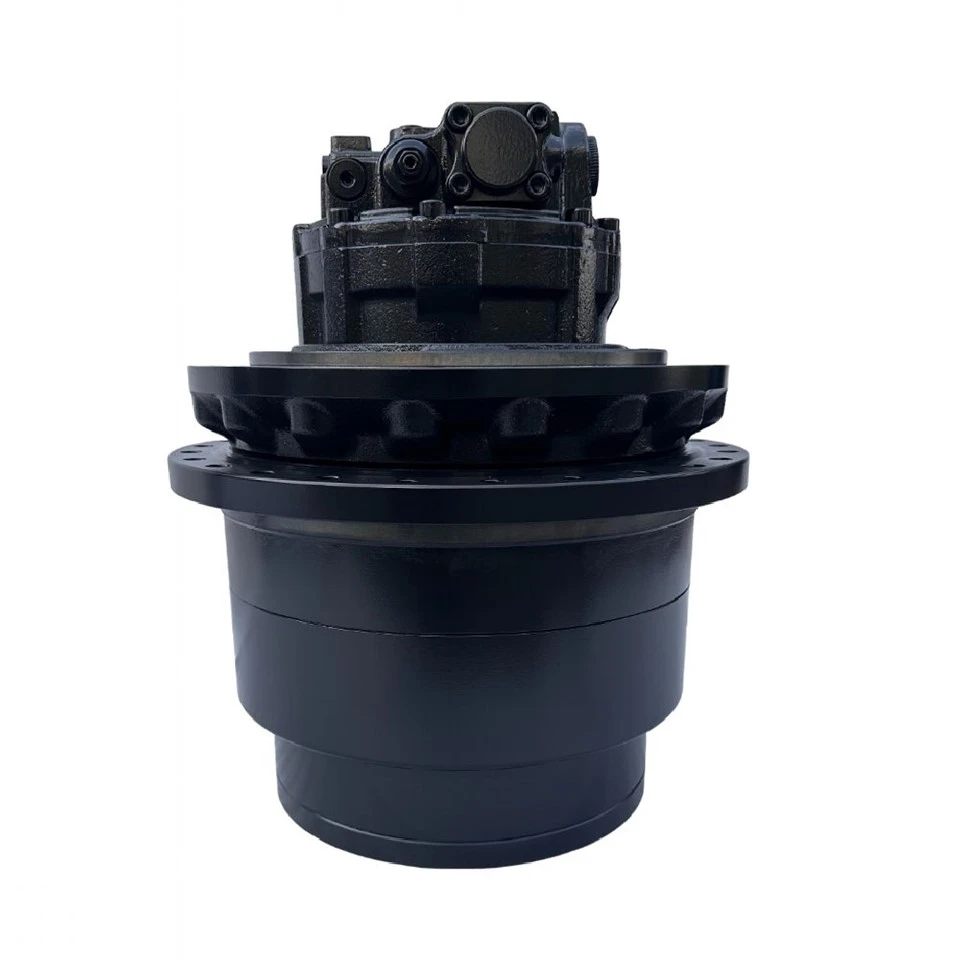

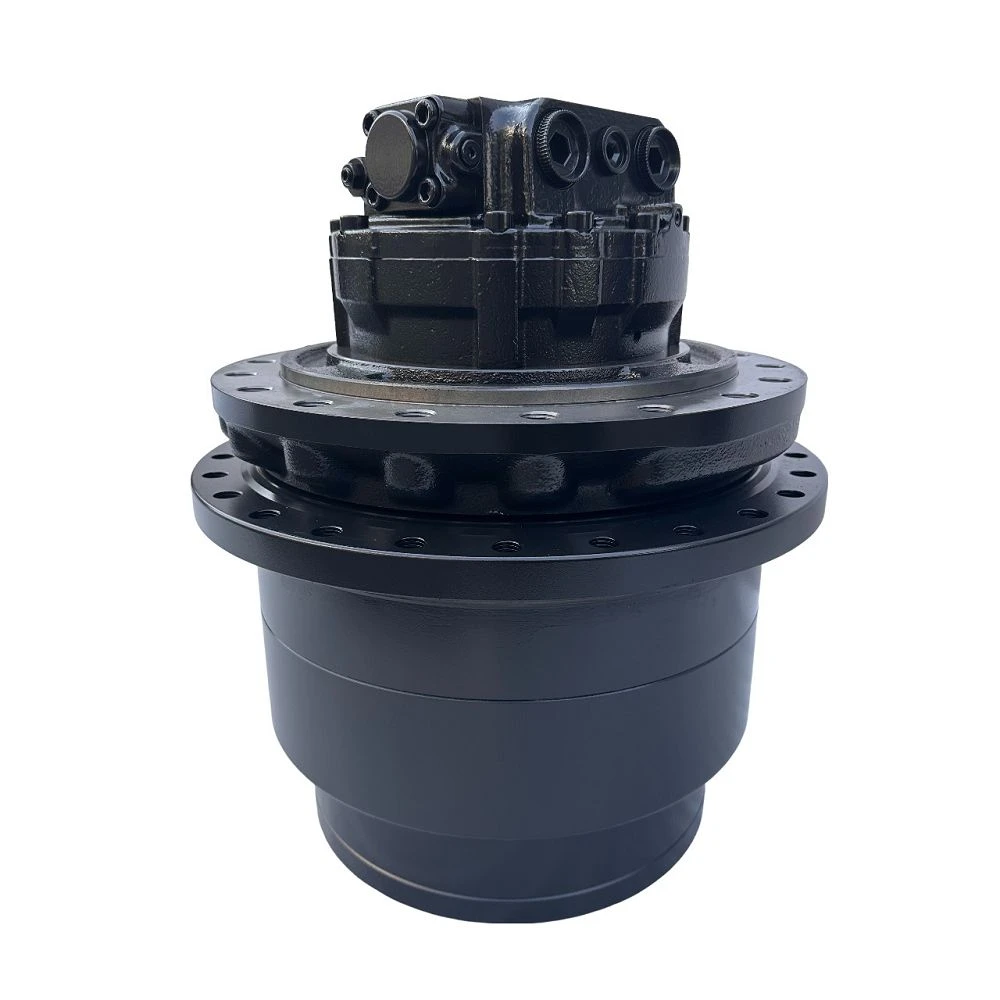

KYB MAG-180VP-6000 Travel Motor
The KYB MAG-180VP-6000 is an integrated axial piston travel motor with planetary reduction and mechanical parking brake, designed for heavy-duty tracked machinery. It delivers high torque and reliable drive performance for 30–36 t excavators and other heavy tracked equipment. Rated operating pressure is 34.3 MPa, with peak torque up to 6,000 kgf·m. Featuring dual-speed variable displacement, robust braking, and low-impact smooth operation, it is a core solution for heavy-duty travel drive systems.
Key Features
Dual-Speed Variable Displacement & Integrated Planetary Reduction
Swash plate axial piston motor combined with a high-strength planetary reducer. Rotating housing design enables compact in-track installation. Dual-speed variable displacement is controlled via external pilot hydraulic signals, providing low-speed high-torque for climbing and high-speed operation for transit. Compact design ensures efficient power transmission.
High Pressure & High Torque for Heavy-Duty Operation
Motor body designed for high-pressure endurance (rated 34.3 MPa). Large piston displacement and high reduction ratio deliver peak torque of 6,000 kgf·m, ensuring reliable startup, slope climbing, and operation on muddy or soft terrain, with excellent load fluctuation tolerance.
Built-In Hydraulic Protection & Smooth Operation
Integrated balance valves, overload relief valves, and anti-reversal valves reduce pressure shocks and hydraulic pulsation during start, direction change, and braking. Optimized flow paths and valve ports minimize throttling loss, improve system efficiency, and prevent motor overload or overspeed damage.
Mechanical Parking Brake for Reliable Safety
Spring-applied, hydraulically released fail-safe parking brake locks automatically when the machine stops. Brake releases automatically upon pilot pressure, ensuring safe operation on slopes and uneven terrain without manual intervention.
Durable Design for Harsh Conditions
Core friction surfaces, planetary gears, and bearings use heavy-duty wear-resistant materials and precision machining. Reinforced sealing system withstands dust, vibration, and extreme temperature ranges, ensuring long-term reliability in continuous operations.
Broad Compatibility & Easy Maintenance
Standardized mounting interfaces and connection dimensions allow direct interchange with equivalent models from Nabtesco, Kawasaki, and other leading brands. Mature mass-produced model with global spare parts availability and low-cost, straightforward maintenance.
Core Advantages
|
Advantage |
Description |
|
Heavy-Duty Adaptability |
Peak torque 6,000 kgf·m with 34.3 MPa rated pressure, ideal for 30–36 t heavy equipment. Provides stable, sufficient power in challenging terrain. |
|
Excellent Travel Quality |
Smooth dual-speed shifting with hydraulic damping minimizes shocks and jerk, enhancing operator comfort and machine productivity. |
|
Comprehensive Safety |
Fail-safe mechanical parking brake combined with hydraulic overload protection safeguards against rollback, uncontrolled movement, and equipment damage. |
|
High Reliability & Longevity |
Heavy-duty construction and premium components reduce failure rates and downtime, lowering total lifecycle operational costs. |
|
Interchangeable & Flexible |
Standardized installation dimensions enable direct replacement of comparable units, facilitating easy upgrades and maintenance with readily available parts. |
Applications
Primarily used for the left and right travel drives of 30–36 t hydraulic excavators. Also suitable for similar-tonnage heavy crawler drills, crawler cranes, tracked crushers, and mining tracked vehicles. Ideal for heavy-duty, continuous, and high-intensity applications such as mining, large infrastructure, earthwork, and hydraulic construction projects, making it a preferred choice for heavy tracked equipment travel systems.
