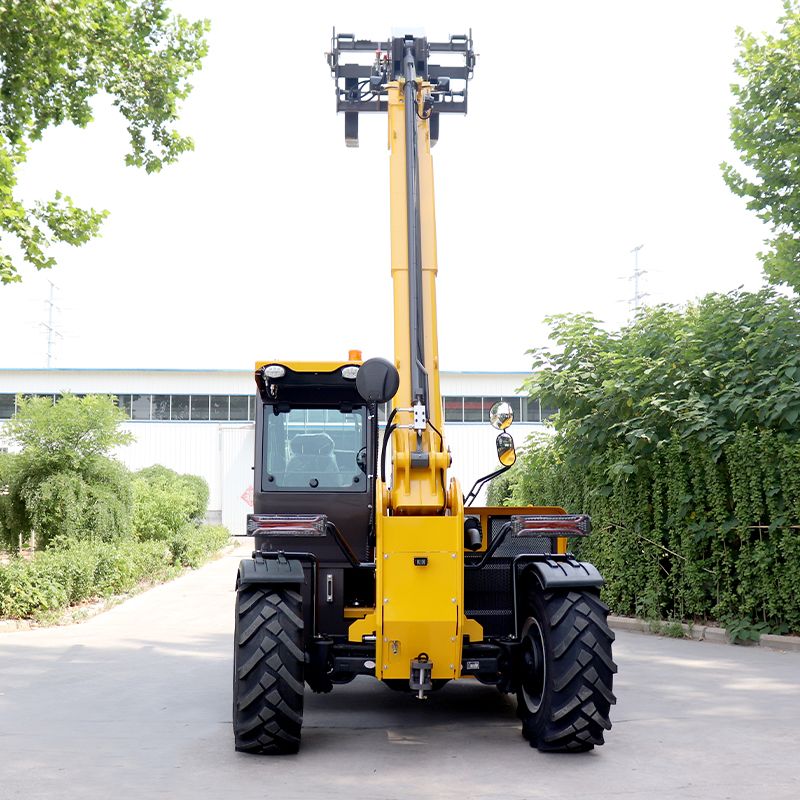

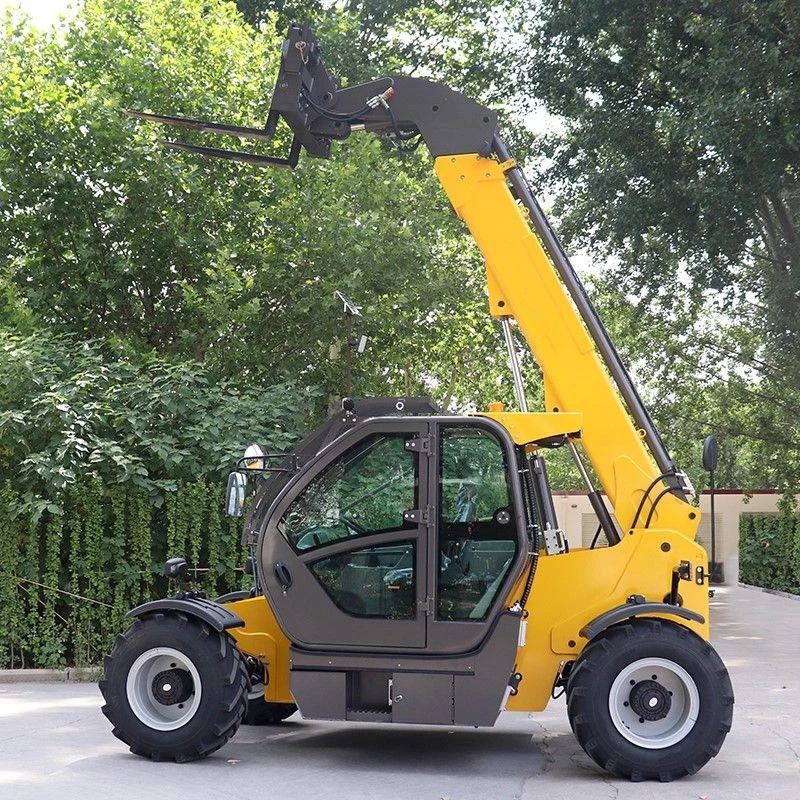

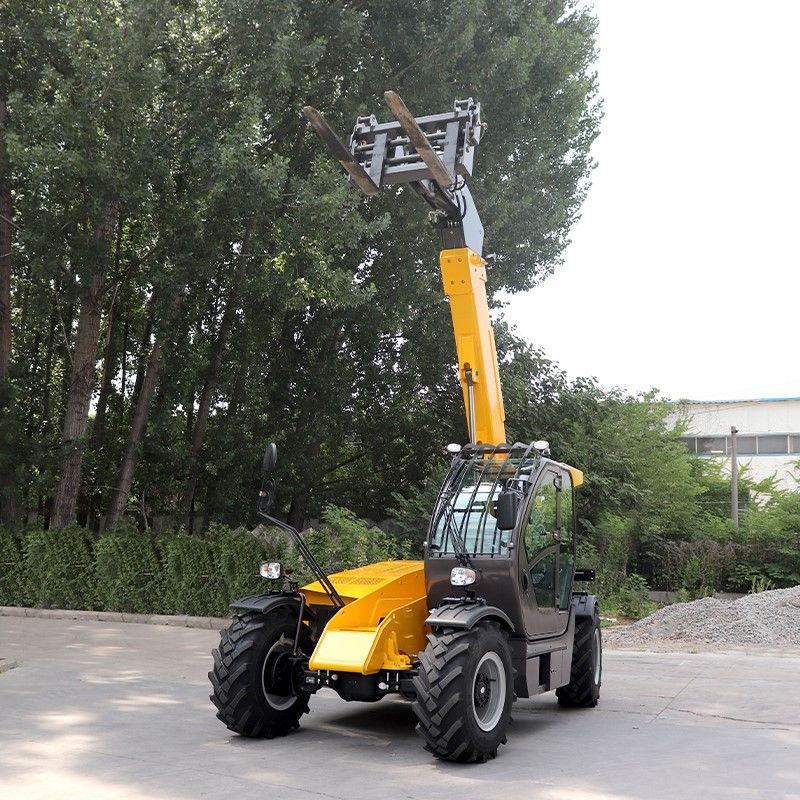

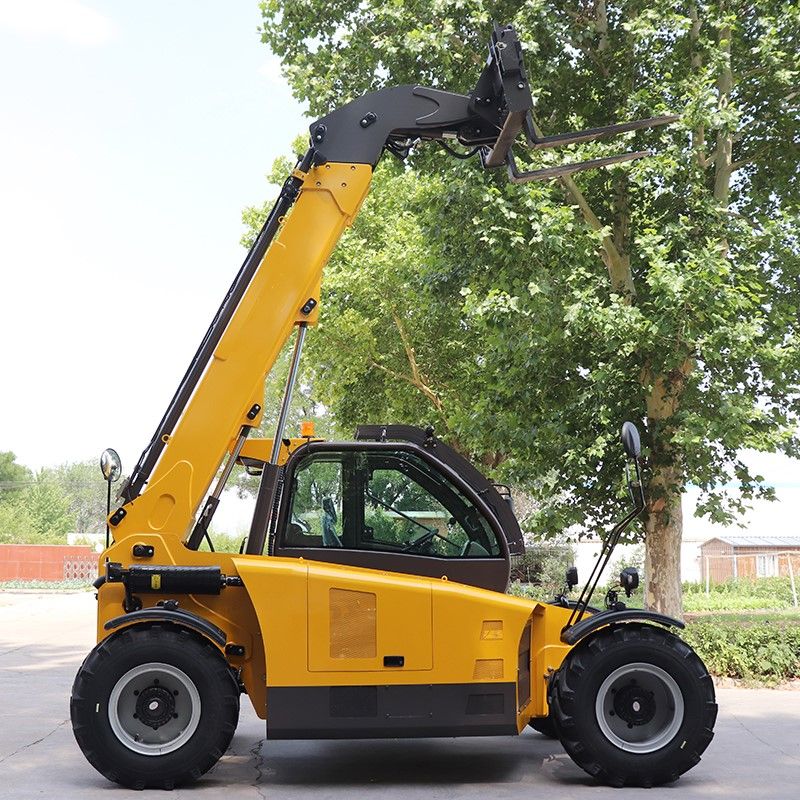

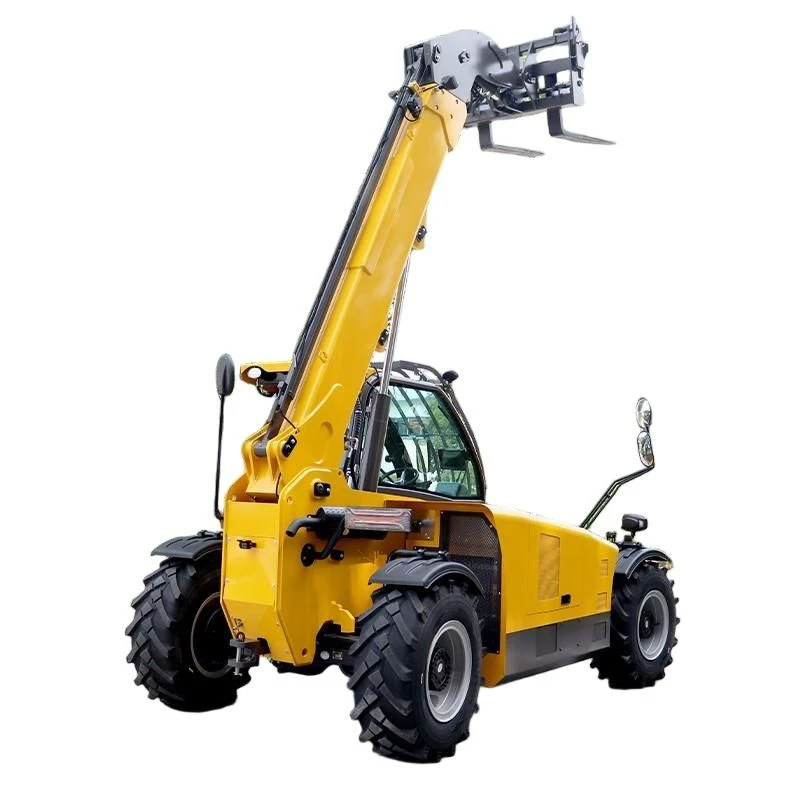

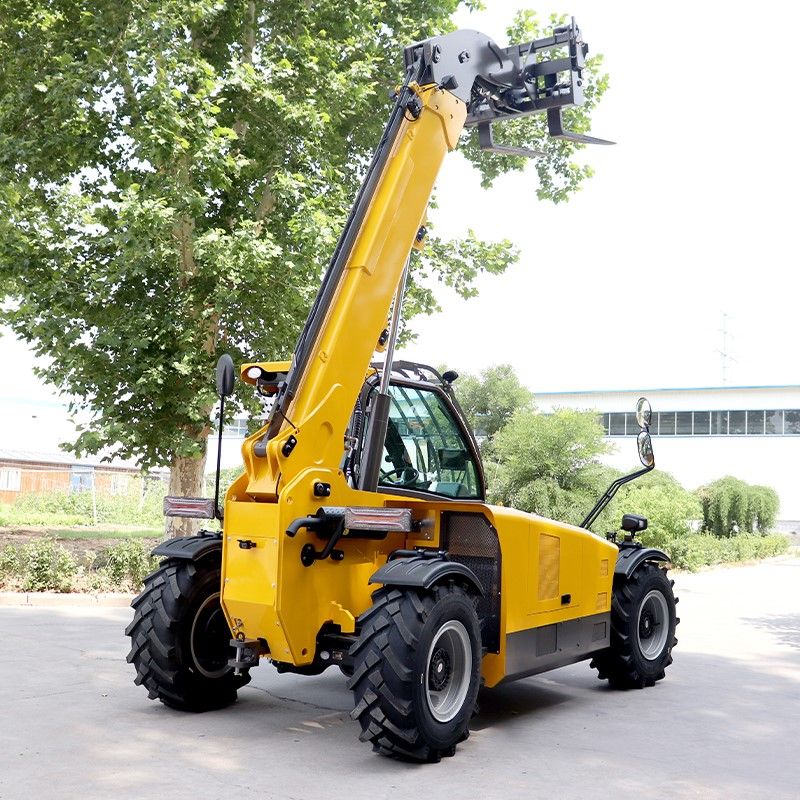

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of ft35 telescopic forklift in China. With abundant experience, we warmly welcome you to buy cheap ft35 telescopic forklift made in China here from our factory. For price consultation, contact us.
Key Features
Reliable Yuchai Engine
Powered by a 77.3 kW Yuchai YCD04M22T-105 diesel engine (China Stage II), delivering stable performance and fuel efficiency.
Efficient Transmission System
HANKO customized gearbox with high/low speed modes (4F/4R) and semi-electronic control for smooth and responsive operation.
Heavy-Duty Drive Axle
Liufeng drive axle with air brake system ensures strong load capacity and reliable braking performance.
Extended Lifting Capability
3-section telescopic boom with a maximum lifting height of 10.5 meters, suitable for high-reach applications.
Adjustable Fork System
1220 mm forks with manual spacing adjustment for flexible material handling.
Off-Road Pneumatic Tires
Equipped with 16/70-20 wide pneumatic tires for enhanced traction and stability on rough terrain.
Premium Hydraulic Components
High-quality pump, valve, and cylinder system ensures precise control and long service life.
Advanced Control & Safety System
Load-sensing multi-way valve with electro-hydraulic proportional control, torque limiting system, and high-precision (±0.5%) weighing system.
Multiple Steering Modes
Supports front-wheel steering, four-wheel steering, and crab steering for maximum maneuverability.
Comfortable & Intelligent Cabin
Luxury cabin with heating & cooling AC, color LCD display, multimedia system, adjustable seat, and multiple cameras (rear + front-right view).
Enhanced Stability & Durability
Equipped with outriggers, 500 kg counterweight, BS1000 high-strength steel structure, and a fully open engine hood for easy maintenance.
Quick Coupler System
Hydraulic quick hitch allows fast attachment changes, improving working efficiency.
Parameters
|
Model |
FT35 |
|
|
Max. Capacity |
3500 kg |
|
|
Max. Lifting Height |
10.5 m |
|
|
Max. Outreach |
6.1 m |
|
|
Weight And Dimensions |
||
|
Overall Length To Carriage |
l11 |
5.8 m |
|
Length To Face Of Forks |
l1 |
7 m |
|
Overall Width |
b1 |
2.2 m |
|
Overall Height |
h17 |
2.55 m |
|
Wheelbase |
y |
3.15 m |
|
Ground Clearance |
m4 |
0.35 m |
|
Overall Cab Width |
b4 |
0.84 m |
|
Tilt-Up Angle |
a4 |
12 ° |
|
Tilt-Down Angle |
a5 |
114 ° |
|
External Turning Radius(Over Tyres) |
4.25 m |
|
|
Unladen Weight(With Fork) |
9500 kg |
|
|
Tires Type |
Pneumatic |
|
|
Standard Tires |
16/70 -20 |
|
|
Forks Length/ Width/ Section |
l / e / s |
1220 mm x 125 mm / 50 mm |
|
Performances |
||
|
Lifting |
10 s |
|
|
Lowering |
7 s |
|
|
Extension |
12 s |
|
|
Retraction |
8.6 s |
|
|
Crowd |
4.8 s |
|
|
Dump |
3.4 s |
|
|
Engine |
||
|
Engine Brand |
YUCHAI |
|
|
Engine Model |
YCD4M22T-105 |
|
|
Rating Power |
77.3kW |
|
|
Transmission |
||
|
Transmission Type |
Torque converter |
|
|
Number Of Gears (Forward / Reverse) |
2/2 |
|
|
Max. Travel Speed |
35 km/h |
|
|
Parking Brake |
Automatic air-cut brake |
|
|
Service Brake |
immersed multi-discs braking on front & rear axles |
|
|
Hydraulics |
||
|
Hydraulic Pump Type |
Gear pump |
|
|
Hydraulic Flow / Pressure |
100 l/min |
|
|
Tank Capacities |
||
|
Engine Oil |
5.5L |
|
|
Hydraulic Oil |
70L |
|
|
Fuel Tank |
95L |
|
|
Noise And Vibration |
||
|
Noise At Driving Position (Lpa) |
82 dB |
|
|
Noise To Environment (Lwa) |
105 dB |
|
|
Vibration On Hands / Arms |
< 2.50 m/s² |
|
|
Miscellaneous |
||
|
Steering Wheels (Front / Rear) |
2/2 |
|
|
Drive Wheels (Front / Rear) |
2/2 |
|
|
Safety Cab Homologation |
FOPS level 2 cab |
