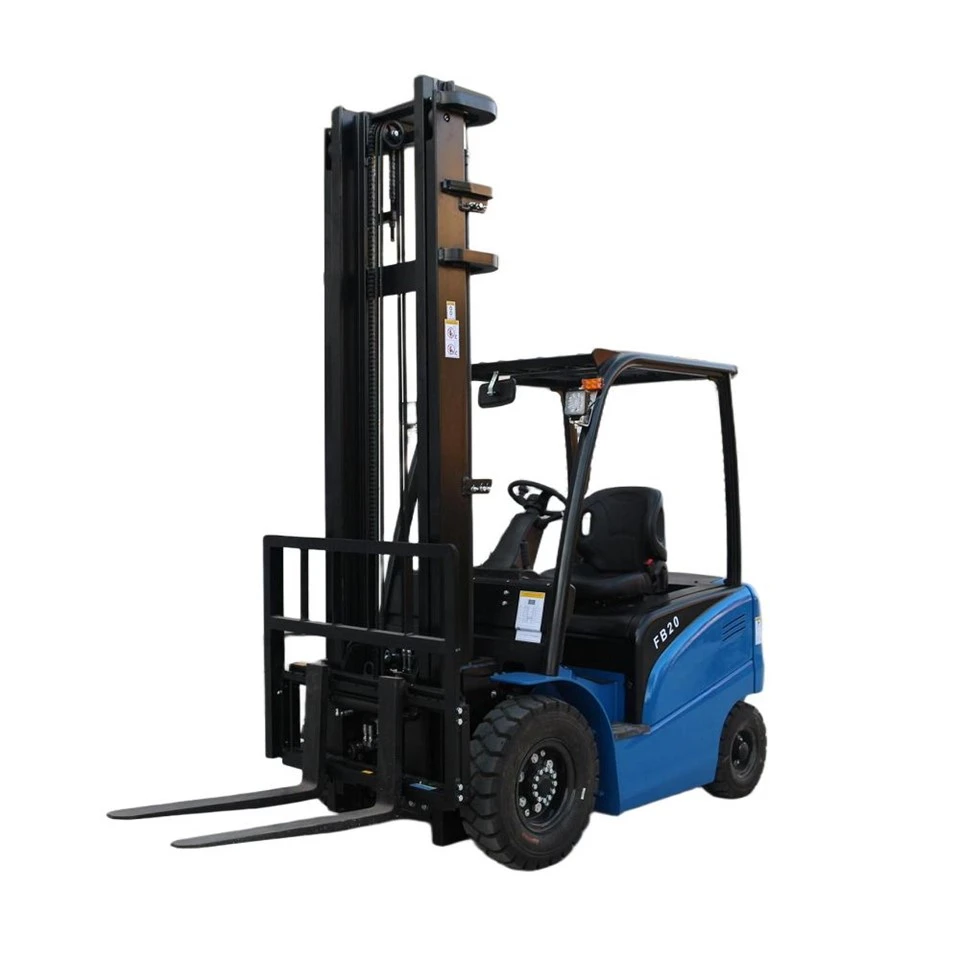

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 2t battery forklift | fb20 in China. With abundant experience, we warmly welcome you to buy cheap 2t battery forklift | fb20 made in China here from our factory. For price consultation, contact us.
Product Introduction
1. High Capacity Lithium Battery Power
High efficiency lithium battery with long endurance, fast charging, and low energy consumption, ensuring stable performance for long hour intensive handling.
2. Smart Digital Control System
Intelligent LCD instrument displays real time battery status, fault codes, and operation data, making control more accurate and maintenance easier.
3. Compact & Flexible Structure
Small turning radius, flexible control, and stable operation, ideal for narrow aisles and limited working spaces.
4. Safe & Reliable Design
Four point chassis, anti rollover protection, and safe braking system greatly improve operational stability and safety.
5. Application Scenarios
Widely used in logistics parks, cold chain warehouses, food factories, pharmaceutical workshops, and airports for clean, quiet, efficient indoor material handling
Parameters
|
Model |
|
FB20 |
|
Rated Capacity |
kg |
2000 |
|
Load Center Distance |
mm |
500 |
|
Power Type |
|
Electric |
|
Wheel Base |
mm |
1500 |
|
Wheel Number(Front/Rear) |
|
2×/2 |
|
Front Tread |
mm |
970 |
|
Rear Tread |
mm |
950 |
|
Tyre(Front) |
|
7.00-12-12PR |
|
Tyre(Rear) |
|
18X7-8PR |
|
Front Overhang |
mm |
468 |
|
Mast Tilting Angle,Front/Rear |
|
6/12 |
|
Height With Mast Retraction |
mm |
1995 |
|
Free Lifting Height |
mm |
150 |
|
Max.Lifting Height |
mm |
3000 |
|
Max.Height After Lifting |
mm |
4045 |
|
Overall Guard Height |
mm |
2098 |
|
Fork Size:Length X Width X Thickness |
mm |
1070×100×40 |
|
Overall Length(Fork Excluded) |
mm |
2353 |
|
Overall Width |
mm |
1170 |
|
Turning Radjus |
mm |
2172 |
|
Ground Clearance Of Mast |
mm |
110 |
|
Ground Clearance Of Wheel Base Center(Loaded) |
mm |
105 |
|
Right Angle Stacking Aisle Width (Pallet 1000×1000Mm),Clearance 200Mm |
mm |
4040 |
|
Right Angle Stacking Aisle Width (Pallet 1200×1200Mm),Clearance 200Mm |
mm |
4240 |
|
Lateral Fork Adjustment Max./Min |
mm |
1038/200 |
|
Travelling Speed (Loaded/Unloaded) |
km/h |
12/14 |
|
Lifting Speed (Loaded/Unloaded) |
mm/s |
320/450 |
|
Lowering Speed |
mm/s |
<600 |
|
Gradeability (Loaded) |
% |
12 |
|
Self Weight |
Kg |
4214 |
|
Battery Voltage /Capacity |
V/Ah |
80/202 |
|
Battery Weight |
Kg |
715 |
|
Driving Motor Power-60 Minutes |
Kw |
11 |
|
Lifting Motor Power(S315%) |
Kw |
12 |
|
Driving Motor Control Mode |
|
Full AC |
|
Lifting Motor Control Mode |
|
Full AC |
|
Service Brake/Parking Brake |
|
Hydraulic /Mechanical |
|
Hydraulic System Working Pressure |
Mpa |
17.5 |
- With technological innovation our product configuration and parameters will continue to change without notice;
- If there is any doubt the specific confirmation of our international trade sales shall prevail;
