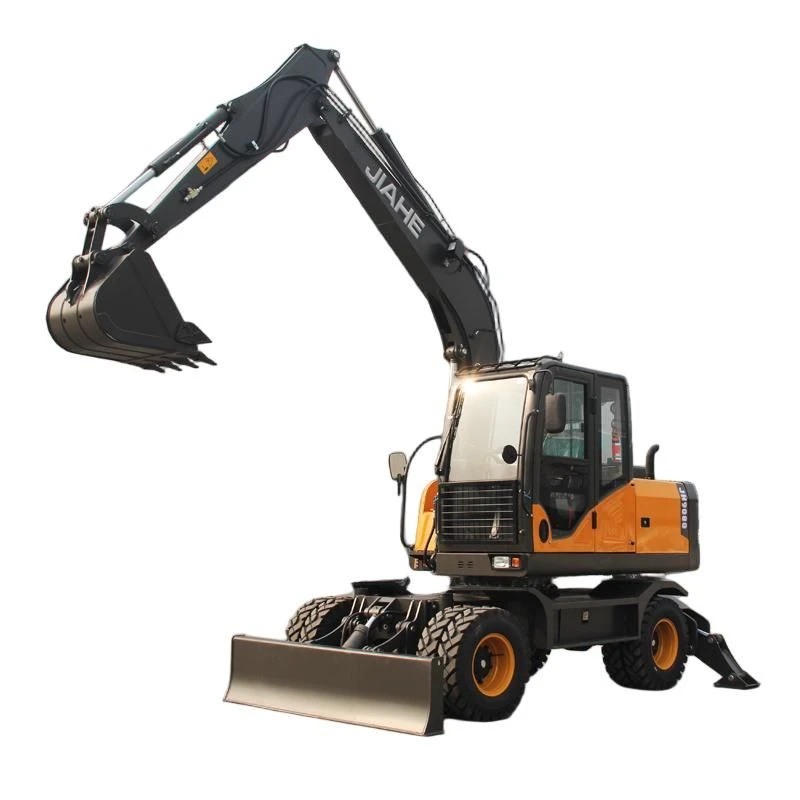

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 8t wheel excavator | jh9080 in China. With abundant experience, we warmly welcome you to buy cheap 8t wheel excavator | jh9080 made in China here from our factory. For price consultation, contact us.

Key Features

Upgraded YC4FA65 Engine –

48kW @ 2200rpm, Tier III, improved power & efficiency

Hydraulic Pilot Servo System –

Smooth, precise control

Enhanced Stability –

Wet axle + reinforced chassis design

Luxury Cabin –

Fully sealed with A/C, LCD display & LED lighting

Breaker Pipeline Ready –

Quick attachment adaptability

Optimized Mobility –

8.25-16 tires for versatile terrain performance

0.28m³ Bucket Capacity –

Balanced digging efficiency

Main Applications

Urban & municipal construction
Road maintenance & repair
Landscaping & utility works
Light excavation & trenching
Material handling & site transfer

Parameters

Model		JH9080
ENGINE	Emission Standard	Tier 3/ Stage III
	Make /Model	Yuchai / YC4FA65
	Power /Rotation speed	48kw//2200rpm
	Type	Diesel with water-cooled, 4-stroke,4-cylinder
PERFORMANCE PARAMETER	Standard Bucket capacity	0.28m³
	Swing speed	11rpm
	Maximum Grade ability	30°
	Travel speed	28km/h
	Maximum Bucket digging force	45KN
	Maximum Arm digging force	36KN
	Hydraulic system pressure	28Mpa
	Machine weight	8000kg
	Fuel tank	200L
	Hydraulic oil tank	90L

Main Dimensions

MACHINE SIZE	Overall dimension (LWHmm)	662021722773mm
	Tread width	8.25-16
	Width of chassis	2108mm
	Length to center of rollers	2400mm
	Wheel(track)Distance	1668mm
	Minimum Ground clearance	239mm
	Swing radius at tail	1787mm
WORKING RANGE	Maximum Digging height	7274mm
	Maximum Dumping height	5450mm
	Maximum Digging depth	3645mm
	Maximum Vertical digging depth	2606mm
	Maximum Digging radius	6486mm
	Minimum swing radius	2045mm
	Length of boom	3725mm
	Length of arm	1620mm
