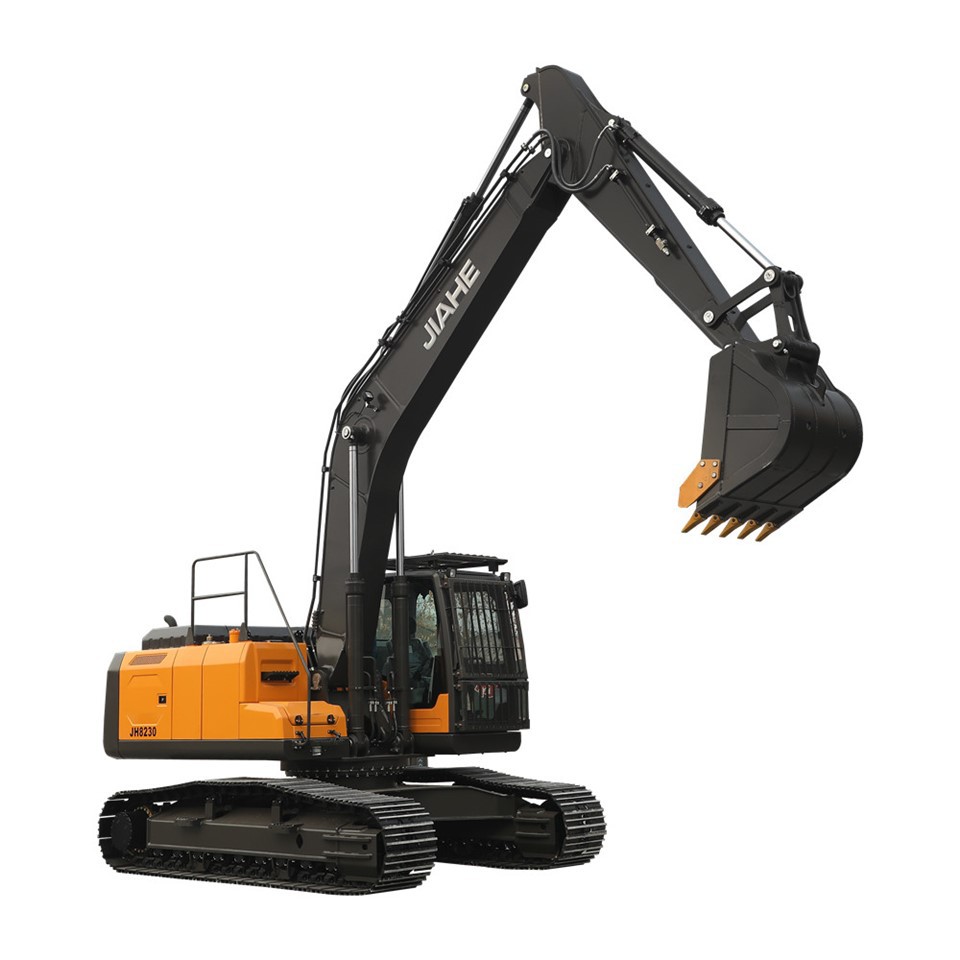

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 23t medium excavator | jh8230 in China. With abundant experience, we warmly welcome you to buy cheap 23t medium excavator | jh8230 made in China here from our factory. For price consultation, contact us.
Product Features
1. Energy-Saving & High Efficiency
Precision matching and energy-saving control optimize power and hydraulic systems, reducing fuel consumption while maintaining high operating efficiency.
2. Excellent Plateau Adaptability
Turbocharging ensures stable power output in high-altitude, low-oxygen environments.
3. Superior Heat Dissipation & Hydraulic Performance
Aerodynamic fan cover enhances heat dissipation. Advanced hydraulic system delivers strong digging force and smooth operation.
4. Flexible Working Adaptability
The 23-ton excavator can be equipped with 16–18m long reach boom for diverse working conditions, with wider operation scope and stronger applicability.
5. Durable Chassis & Wide Vision
Optimized track frame reduces wear and soil accumulation. Large windows minimize blind spots for safer operation.
6. Easy Maintenance
Key filters are ground-level accessible. Large fuel tank and toolbox support long-hour working.
7. High Cost-Effectiveness
Reliable components extend service life and lower maintenance costs.
Applications
Urban construction, river dredging, slope trimming, foundation excavation, municipal engineering, large-scale earth moving, and long-distance digging with 16–18m long reach boom.
Parameters
| Model | JH8230 | |
|
>>>> SPECIFICATIONS: |
||
|
ENGINE |
Emission Standard |
Tier 2/ Stage II |
|
Make /Model |
CUMMINS / 6BTAA5.9-C178 |
|
|
Power /Rotation speed |
133kw@2000rpm |
|
|
Type |
Diesel with water-cooled, |
|
|
TRACK SYSTEM |
Maximum Travel speed |
2.4/4.3 km/h |
|
Width of track shoe |
600mm |
|
|
Number of track shoe per side |
49pcs |
|
|
Number of upper roller per side |
2 |
|
|
Number of bottom roller per side |
9 |
|
|
PERFORMANCE PARAMETER |
Standard Bucket capacity |
1.1m³ |
|
Swing speed |
12rpm |
|
|
Maximum Grade ability |
35°(70%) |
|
|
Maximum Bucket digging force |
140KN |
|
|
Maximum Arm digging force |
99KN |
|
|
Hydraulic system pressure |
34Mpa |
|
|
Machine weight |
22800kg |
|
|
Fuel tank |
350L |
|
|
Hydraulic oil tank |
220L |
|
Main Dimensions
|
MACHINE SIZE |
Overall dimension (L*W*H) |
9590mm*2980mm*3185mm |
|
Height of cabin |
3060mm |
|
|
Track length on ground(Axle base) |
3655mm |
|
|
Track gauge |
2380mm |
|
|
Minimum Ground clearance |
470mm |
|
|
Swing radius at tail |
2880mm |
|
|
WORKING RANGE |
Maximum Digging height |
9410mm |
|
Maximum Dumping height |
6730mm |
|
|
Maximum Digging depth |
6480mm |
|
|
Maximum Vertical digging depth |
5925mm |
|
|
Maximum Digging radius |
9850mm |
|
|
Minimum swing radius |
3555mm |
