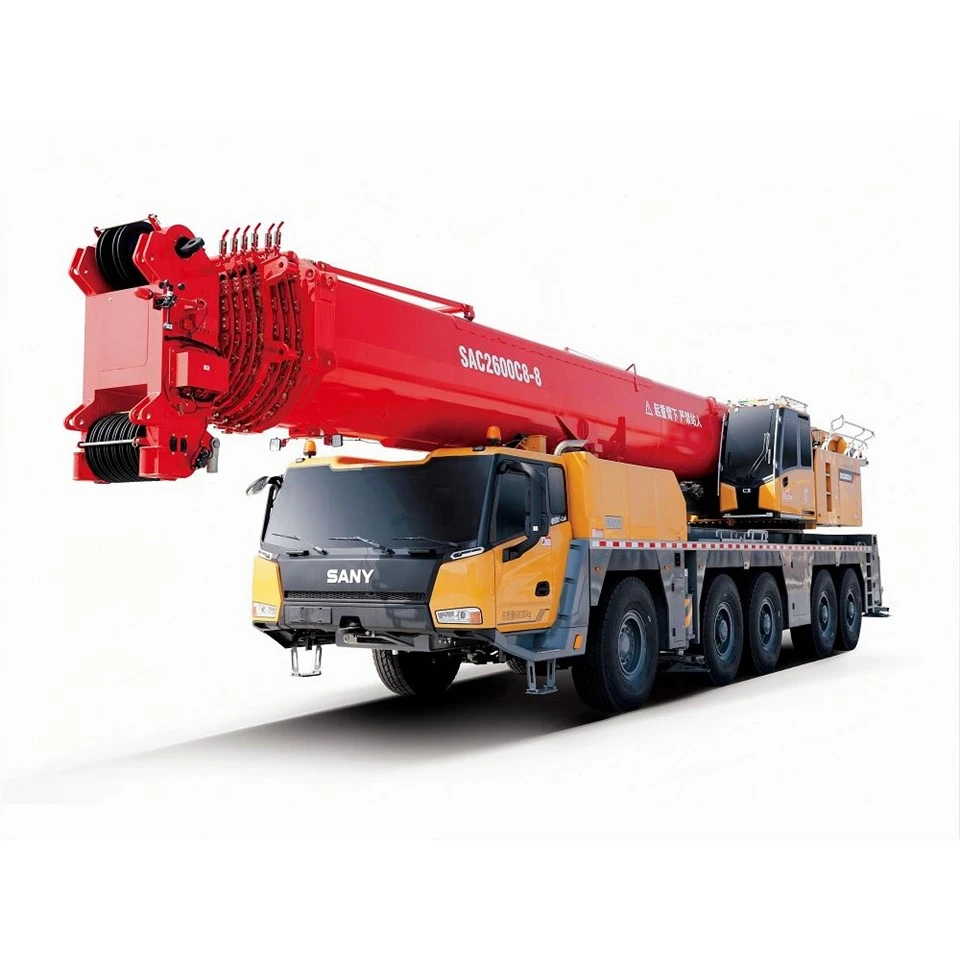

260T All-Terrain Crane | SAC2600C8-8

Main Boom & Lifting Capability

Eight-section elliptical main boom fully extends to 88 m, with a standard 20 m auxiliary boom. Optional two 8 m extension arms are available. Maximum lifting height reaches 18 m, easily completing 100 m line tower installations.

Mobility & Stability

Equipped with standard 445/95R25 tires, capable of navigating muddy and uneven terrain without sinking. Can carry 22 t counterweight plus four outrigger pads for low-speed relocation.

Bridge & Tower Crane Operation

Designed for typical bridge work: 12 m working radius, 24.5 m boom length, lifting capacity 64 t. Without super lift: 72.8 m main boom, 18 m auxiliary boom, lifting capacity 19 t, suitable for 230 m wind turbine tail operations.

Engine & Fuel Efficiency

Powered by Dongkang non-EU Stage IV engine, achieving 30% lower fuel consumption without the need for urea, saving approximately 100,000 RMB annually.

Crane Performance

Maximum lifting moment of the base boom: 780 tm. Maximum full-extended main boom lifting capacity: 9 t. Performance comparable to 300 t cranes, with 22 t onboard counterweight covering 90% of 130 t working conditions.

Operator Comfort

Main cabin equipped with air-suspended multifunctional seat, secondary cabin with folding double seat and sleeper berth. Electric seat and armrest console are integrated.

Advanced Remote Control

Multi-function wireless full-vehicle remote control system enhances crane operation convenience and improves operator safety.

Precision & Safety Systems

High-precision, high-stability, and intelligent torque limiter system provides comprehensive protection during lifting operations.

Sensor & Monitoring Technology

Equipped with abundant sensors for real-time data feedback and monitoring, enabling operators to track full vehicle working status at any time.
